Bronze Angle Bolted Bonnet Regular Valve - DIN PN16
Bronze Angle Bolted Bonnet Regular Valve - DIN PN16
SKU:VAL-935956
Durable Bronze Angle Valve with Brass Stem, DIN PN16 Compliant
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Bronze Angle Bolted Bonnet Regular Valve - DIN PN16
$299.99
Quantity: 1
Claim Your Seller Account
Bronze Angle Bolted Bonnet Regular Valve - DIN PN16
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Angle Bolted Bonnet Regular Valve is a high-quality valve designed for industrial applications. Made with durable bronze body, seat, and disc, this valve ensures reliable performance and longevity. The stem is crafted from brass providing corrosion resistance. With DN2501-PN16 flanges, this valve is easy to install and compatible with various systems. The Handwheel actuator allows for manual operation. Compliant with DIN standards, this valve meets the stringent requirements of institutional buyers.
Ready to Grow Without Cash Flow Constraints?

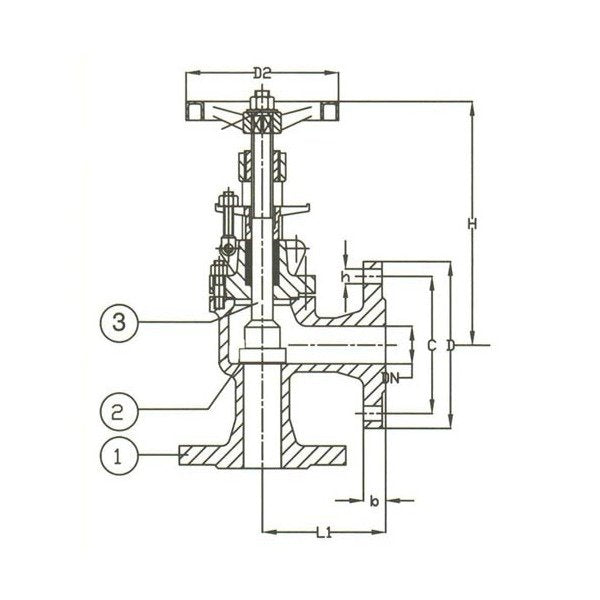

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
160 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications D2
200 mm
Specifications Disc Material
Bronze
Specifications H
320 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
155 mm
Specifications Number Of Holes
8
Specifications Seat Material
Bronze
Specifications Size
080
Specifications Stem Material
Brass
Specifications T
20 mm
Specifications Weight
24.0 kg
