Bronze Angle Bolted Bonnet Regular Valve - PN 16

Name: Bronze Angle Bolted Bonnet Regular Valve - PN 16
Brand: World Wide Metric, Inc.
SKU: VAL-047069
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-047069

Durable Bronze Angle Valve with PN 16 rating, ideal for precise flow control in diverse applications.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Angle Bolted Bonnet Regular Valve, PN 16, is a durable and reliable valve suitable for a wide range of applications. Constructed with high-quality bronze body, seat, disc, and brass stem, this valve ensures efficient flow control and longevity. Designed with industry-standard dimensions and materials, it meets DIN and ISO standards for seamless integration into various systems. The handwheel actuators and flanged connection provide ease of operation and installation, making it a versatile choice for both consumer and institutional buyers.

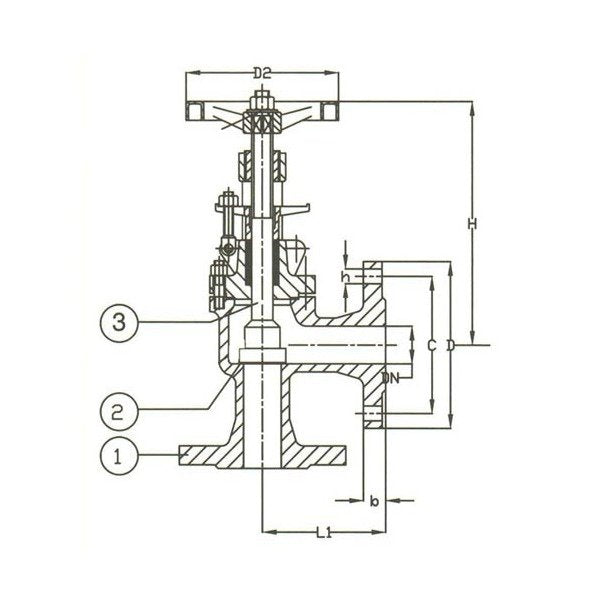

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

270 mm

Specifications Connection

Flanged Drilled

Specifications D

315 mm

Specifications D2

300 mm

Specifications Disc Material

Bronze

Specifications H

550 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

250 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

175

Specifications Stem Material

Brass

Specifications T

24 mm

Specifications Weight

107 kg

Bronze Angle Bolted Bonnet Regular Valve - PN 16
