Bronze Angle Bolted Bonnet Regular Valve - PN 16
Bronze Angle Bolted Bonnet Regular Valve - PN 16
SKU:VAL-539d0d
High-performance PN 16 Bronze Angle Valve for industrial & institutional use. DIN standards compliant.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Bronze Angle Bolted Bonnet Regular Valve - PN 16
$349.99
Quantity: 1
Claim Your Seller Account
Bronze Angle Bolted Bonnet Regular Valve - PN 16
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Angle Bolted Bonnet Regular Valve with PN 16 rating is designed for durability and high performance. Constructed with gunmetal body, bronze disc, and stainless steel stem, this valve ensures reliable hydraulic operations. Compliant with DIN standards, featuring precise measurements and flanges according to DIN2501-PN16, this valve is ideal for industrial and institutional applications.

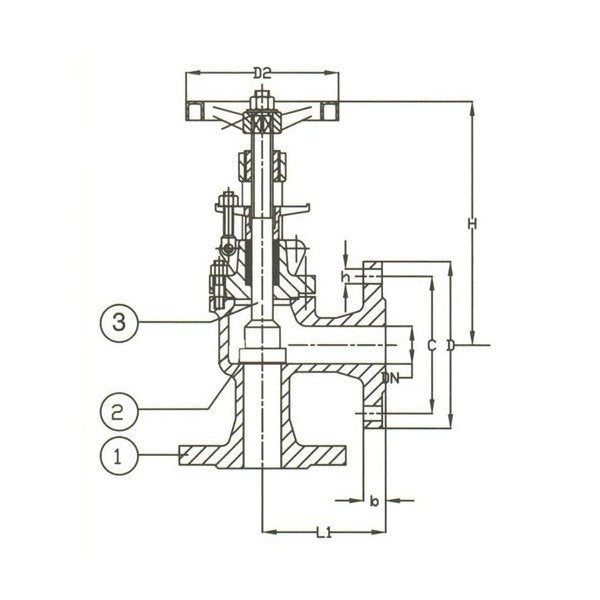

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
160 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications D2
200 mm
Specifications Disc Material
Bronze
Specifications H
320 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
155 mm
Specifications Number Of Holes
8
Specifications Seat Material
Bronze
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications T
20 mm
Specifications Weight
24.0 kg
