Bronze Angle Bolted Bonnet Regular Valve - Size 200, PN 16
Bronze Angle Bolted Bonnet Regular Valve - Size 200, PN 16
SKU:VAL-d535a3
High-performance Bronze Angle Valve, PN 16, DIN-compliant, ideal for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Bronze Angle Bolted Bonnet Regular Valve - Size 200, PN 16
$899.99
Quantity: 1
Claim Your Seller Account
Bronze Angle Bolted Bonnet Regular Valve - Size 200, PN 16
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

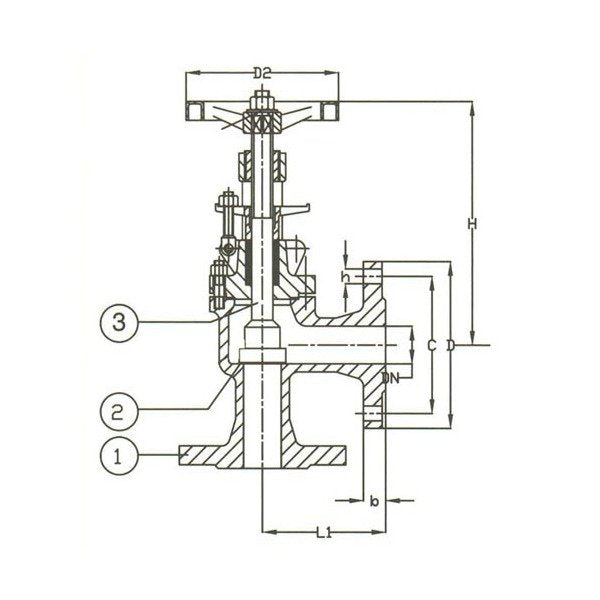

The Bronze Angle Bolted Bonnet Regular Valve, with a gunmetal body, bronze disc, seat, and stem, is crafted in compliance with DIN standards. Designed for precise hydraulic control, this valve offers dimensions of L: 275mm, D: 340mm, C: 295mm, making it ideal for industrial applications. Featuring a sturdy construction and handwheel actuator, this valve ensures reliable performance under high pressure. Flanged connections adhere to rigorous DIN N10 specifications, ensuring seamless integration into various systems.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
295 mm
Specifications Connection
Flanged Drilled
Specifications D
340 mm
Specifications D2
420 mm
Specifications Disc Material
Bronze
Specifications H
570 mm
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications L
275 mm
Specifications Number Of Holes
8
Specifications Seat Material
Bronze
Specifications Size
200
Specifications Stem Material
Brass
Specifications T
24 mm
Specifications Weight
135.0 kg
