Bronze Angle Bolted Bonnet SDNR Valve - PN 16

Name: Bronze Angle Bolted Bonnet SDNR Valve - PN 16
Brand: World Wide Metric, Inc.
SKU: VAL-168a59
Price: 219.99 USD
Availability: OutOfStock

SKU:VAL-168a59

Reliable Bronze Angle Valve with DIN2501-PN16 Flanges. Durable construction for optimal performance. Handwheel actuator for easy operation.

$219.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Angle Bolted Bonnet SDNR Valve is a high-quality valve designed for durability and efficiency. With its gunmetal body, bronze seat, and stem options of brass or stainless steel, this valve ensures reliable performance in various applications. Featuring Flanges according to DIN2501-PN16 standards and precise dimensions per ISO5752 Series 8, this valve guarantees a secure fit and optimal functionality. The handwheel actuator allows for easy operation, making it a versatile choice for both consumer and institutional buyers seeking top-tier valve solutions.

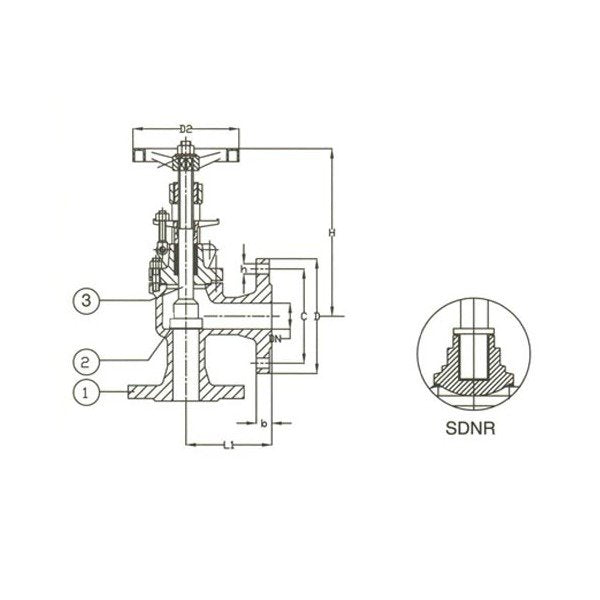

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

125 mm

Specifications Connection

Flanged Drilled

Specifications D

165 mm

Specifications D2

150 mm

Specifications Disc Material

Bronze

Specifications H

260 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

125 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

050

Specifications Stem Material

Brass

Specifications T

18 mm

Specifications Weight

12.0 kg
