Bronze Angle Bolted Bonnet SDNR Valve - PN 16, DIN Certified

Name: Bronze Angle Bolted Bonnet SDNR Valve - PN 16, DIN Certified
Brand: World Wide Metric, Inc.
SKU: VAL-77dc49
Price: 179.99 USD
Availability: OutOfStock

SKU:VAL-77dc49

Reliable PN 16 Bronze Angle Valve with DIN Certification for precision fluid control.

$179.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Angle Bolted Bonnet SDNR Valve is a top-of-the-line valve designed for precision and durability. Crafted with gunmetal body, bronze disc, stem, and seat materials, this valve ensures reliable performance in fluid control applications. With DIN certifications for quality assurance, this valve offers a robust solution for industrial settings. The handwheel actuator provides ease of operation, while the flanged connection ensures secure installation. Meet your fluid control needs with confidence using this premium bronze valve.

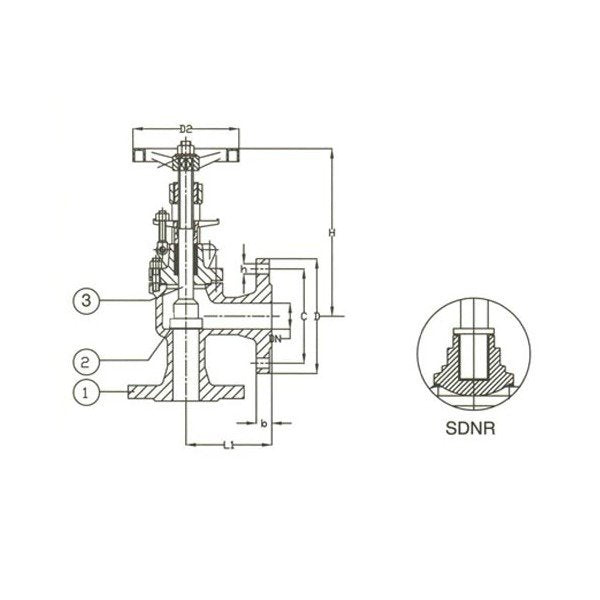

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

100 mm

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications D2

125 mm

Specifications Disc Material

Bronze

Specifications H

200 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

105 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

032

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

7.6 kg
