Bronze Angle Bolted Bonnet SDNR Valve - Size 015, PN 16

Name: Bronze Angle Bolted Bonnet SDNR Valve - Size 015, PN 16
Brand: World Wide Metric, Inc.
SKU: VAL-4f57d7
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-4f57d7

Premium Bronze Angle SDNR Valve - Reliable, Durable, and Efficient. DIN Standard Compliant.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

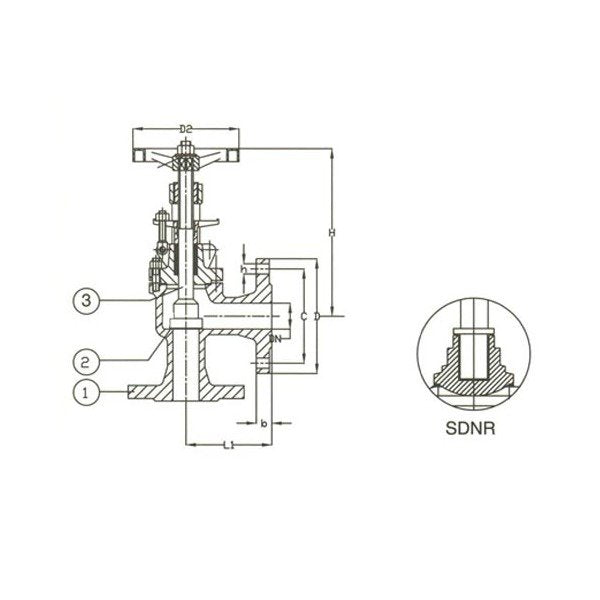

The Bronze Angle Bolted Bonnet SDNR Valve is a reliable solution for fluid control applications. Crafted with high-quality materials including Bronze body, seat, and disc, and Brass stem, this valve ensures durability and efficient performance. With precise dimensions meeting DIN standards and a handwheel for manual operation, it offers ease of use and long-lasting functionality. Designed for compatibility with flanged connections, this valve is ideal for diverse industrial settings, meeting stringent quality and compliance requirements.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

65 mm

Specifications Connection

Flanged Drilled

Specifications D

95 mm

Specifications D2

100 mm

Specifications Disc Material

Bronze

Specifications H

160 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

90 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

015

Specifications Stem Material

Brass

Specifications T

14 mm

Specifications Weight

3.2 kg

Bronze Angle Bolted Bonnet SDNR Valve - Size 015, PN 16
