Bronze Angle Bolted Bonnet SDNR Valve - Size 080, PN 16

Name: Bronze Angle Bolted Bonnet SDNR Valve - Size 080, PN 16
Brand: World Wide Metric, Inc.
SKU: VAL-9a3b30
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-9a3b30

High-quality Bronze Angle Valve, Size 080, PN 16, DIN2501-PN16 Flanges, Handwheel Actuator

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Angle Bolted Bonnet SDNR Valve is expertly crafted with a Gunmetal body, ensuring durability and reliability. It features a Bronze disc and seat, along with a sturdy Brass stem. With flanges according to DIN2501-PN16 standards, this valve offers precision and quality. The valve's Handwheel actuator allows for easy operation, making it a versatile choice for a range of applications.

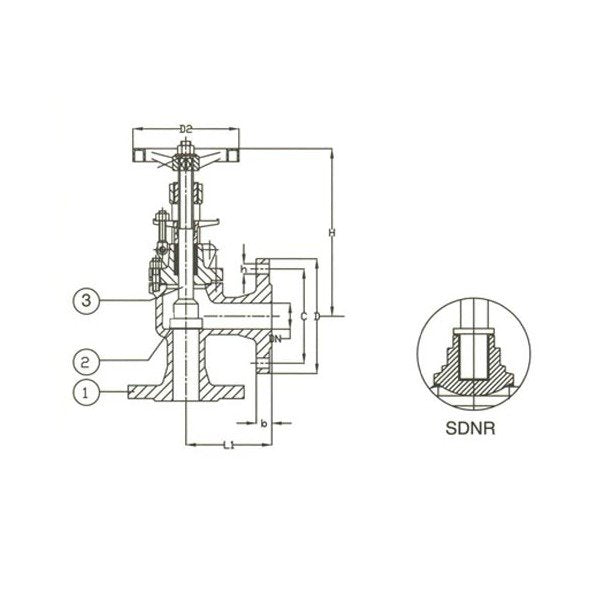

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

160 mm

Specifications Connection

Flanged Drilled

Specifications D

200 mm

Specifications D2

200 mm

Specifications Disc Material

Bronze

Specifications H

320 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

155 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

080

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications Weight

24.0 kg
