Bronze Angle Bolted Bonnet Valve - PN 16 Short Pattern

Name: Bronze Angle Bolted Bonnet Valve - PN 16 Short Pattern
Brand: World Wide Metric, Inc.
SKU: VAL-d9c17d
Price: 249.99 USD
Availability: OutOfStock

SKU:VAL-d9c17d

High-performance Bronze Angle Valve - DIN Standard, PN 16, Handwheel Actuator

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Angle Bolted Bonnet Valve, designed to DIN standards, features a durable bronze body, stem, disc, and seat. With a secure bolted bonnet, this valve ensures reliable performance under high pressure. The handwheel actuator allows for easy operation, while the flanged connection simplifies installation. This valve is ideal for industrial applications requiring precise hydraulic control and meets stringent quality standards.

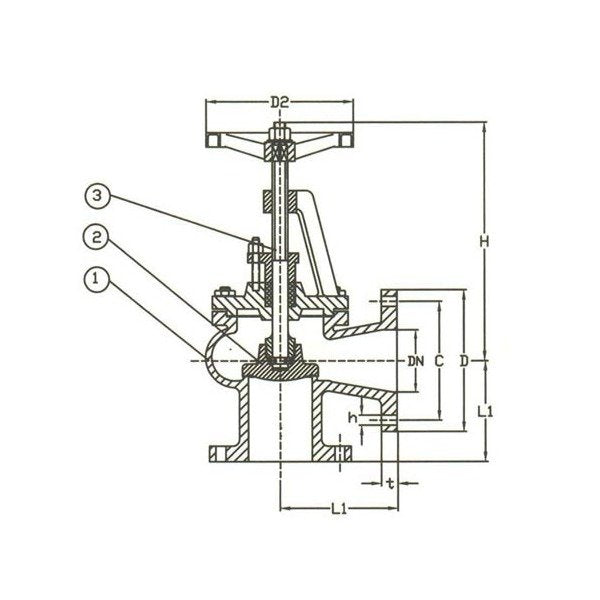

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

110 mm

Specifications Connection

Flanged Drilled

Specifications D

150 mm

Specifications D2

150 mm

Specifications Disc Material

Bronze

Specifications H

210 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

90 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

040

Specifications Stem Material

Brass

Specifications T

19 mm

Specifications Weight

10.0 kg
