Bronze Angle Bolted Bonnet Valve PN 16 - Short Pattern, 175mm
Bronze Angle Bolted Bonnet Valve PN 16 - Short Pattern, 175mm
SKU:VAL-6a9093
Durable Bronze Angle Bolted Bonnet Valve PN 16 - Short Pattern for industrial use. Compliant with DIN standards.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Bronze Angle Bolted Bonnet Valve PN 16 - Short Pattern, 175mm
$499.99
Quantity: 1
Claim Your Seller Account
Bronze Angle Bolted Bonnet Valve PN 16 - Short Pattern, 175mm
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Angle Bolted Bonnet Valve PN 16 - Short Pattern is a durable and high-performance valve designed for industrial applications. Crafted with precision, this valve features a gunmetal body, bronze seat, disc, and stem to ensure reliability and longevity. Compliant with DIN standards, with flanges meeting DIN2501-PN16 requirements, this valve guarantees efficient hydraulic performance. The handwheel actuator offers easy operation, making it a versatile choice for various systems.

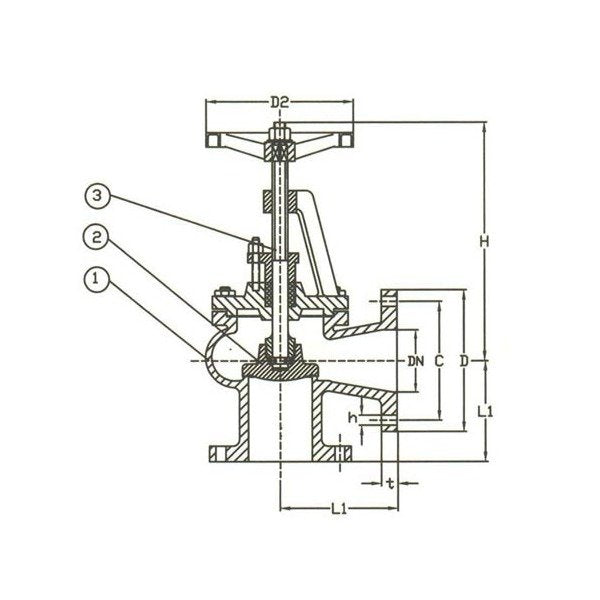

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
270 mm
Specifications Connection
Flanged Drilled
Specifications D
315 mm
Specifications D2
300 mm
Specifications Disc Material
Bronze
Specifications H
520 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
225 mm
Specifications Number Of Holes
8
Specifications Seat Material
Bronze
Specifications Size
175
Specifications Stem Material
Brass
Specifications T
28 mm
Specifications Weight
96 kg
