Bronze Angle Bolted Bonnet Valve - PN 16 Short Pattern, DIN Certified

Name: Bronze Angle Bolted Bonnet Valve - PN 16 Short Pattern, DIN Certified
Brand: World Wide Metric, Inc.
SKU: VAL-607a3a
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-607a3a

Precision-crafted Bronze Angle Bolted Bonnet Valve for industrial hydraulic systems, DIN certified.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Angle Bolted Bonnet Valve - Short Pattern is a premium industrial valve designed for durability and optimal performance. Crafted with high-quality bronze materials for the body, seat, and disc, this valve ensures reliable operation in demanding environments. The brass stem and handwheel actuator provide smooth control for hydraulic applications. Meeting DIN standards and featuring flanged connection according to DIN2501-PN16, this valve guarantees precision and efficiency in fluid control systems.

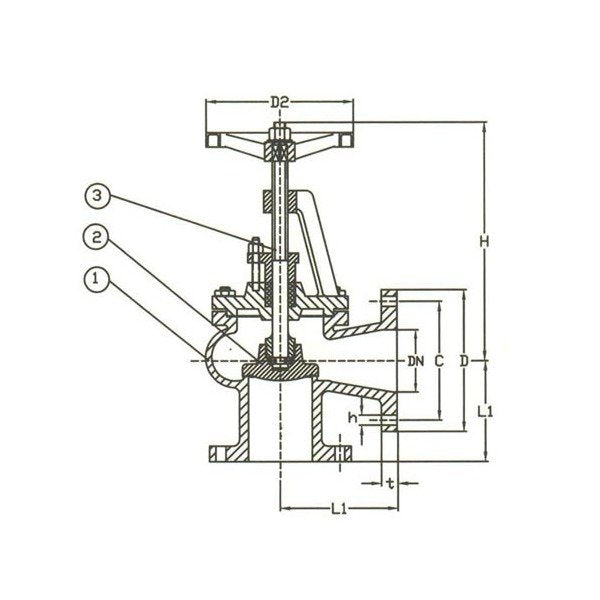

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

160 mm

Specifications Connection

Flanged Drilled

Specifications D

200 mm

Specifications D2

200 mm

Specifications Disc Material

Bronze

Specifications H

275 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

125 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

080

Specifications Stem Material

Brass

Specifications T

22 mm

Specifications Weight

31.0 kg
