Bronze Angle Bolted Bonnet Valve - PN 16 Short Pattern - DIN Certified

Name: Bronze Angle Bolted Bonnet Valve - PN 16 Short Pattern - DIN Certified
Brand: World Wide Metric, Inc.
SKU: VAL-8cd8a4
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-8cd8a4

Durable Bronze Angle Bolted Bonnet Valve - DIN Certified for industrial applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Angle Bolted Bonnet Valve, PN 16 Short Pattern, is a reliable solution for fluid control applications. Constructed with high-quality Bronze body, seat, and disc, and Brass stem, this valve ensures durability and performance. Compliant with DIN standards, it features a Handwheel actuator for easy operation. With precise dimensions and a robust design, this valve is ideal for industrial and institutional use.

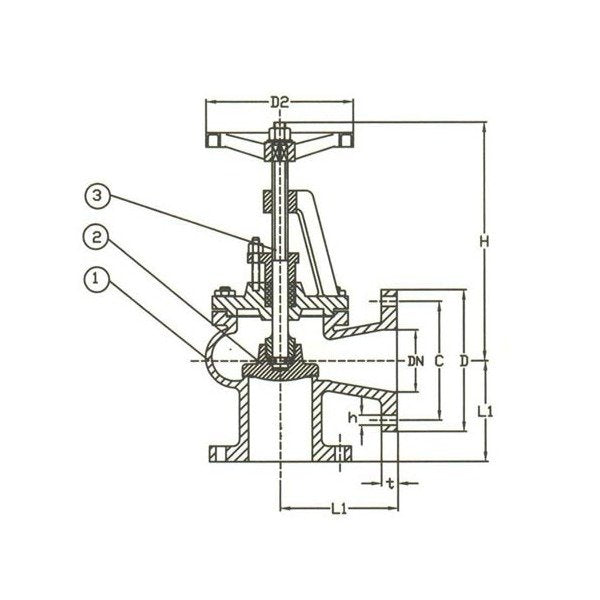

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

125 mm

Specifications Connection

Flanged Drilled

Specifications D

165 mm

Specifications D2

150 mm

Specifications Disc Material

Bronze

Specifications H

215 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

105.0 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

050

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications Weight

12.0 kg
