Bronze Angle Bolted Bonnet Valve - Short Pattern, PN 16

Name: Bronze Angle Bolted Bonnet Valve - Short Pattern, PN 16
Brand: World Wide Metric, Inc.
SKU: VAL-9eaa38
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-9eaa38

Premium PN 16 Bronze Angle Valve for reliable industrial performance.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Angle Bolted Bonnet Valve in short pattern design is crafted for precision performance in industrial applications. Made of high-quality bronze, this valve features a gunmetal body, brass stem, and bronze disc ensuring durability and reliability. With flanges meeting DIN2501-PN16 standards, this valve guarantees seamless integration and efficient operation. The handwheel actuator provides easy control, making it ideal for institutional setups requiring robust valves.

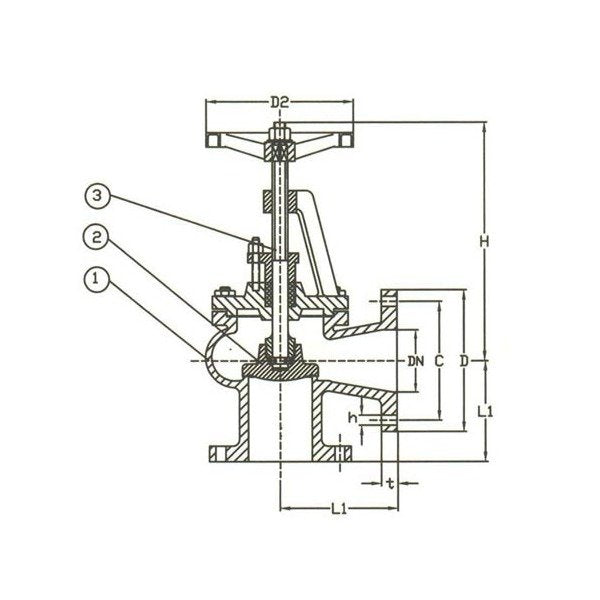

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

180 mm

Specifications Connection

Flanged Drilled

Specifications D

220 mm

Specifications D2

225 mm

Specifications Disc Material

Bronze

Specifications H

325 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

145 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

100

Specifications Stem Material

Brass

Specifications T

24 mm

Specifications Weight

41 kg

Bronze Angle Bolted Bonnet Valve - Short Pattern, PN 16
