Bronze Angle Bolted Bonnet Valve - Short Pattern, PN 16
Bronze Angle Bolted Bonnet Valve - Short Pattern, PN 16
SKU:VAL-df36a9
Premium PN 16 Bronze Angle Bonnet Valve - DIN Compliant
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Bronze Angle Bolted Bonnet Valve - Short Pattern, PN 16
$129.99
Quantity: 1
Claim Your Seller Account
Bronze Angle Bolted Bonnet Valve - Short Pattern, PN 16
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Bronze Angle Bolted Bonnet Valve - Short Pattern is a reliable and durable solution for fluid control applications. Constructed with high-quality bronze materials, this valve ensures longevity and resilience. The gunmetal body, brass stem, and bronze disc meet DIN standards for performance and safety. Featuring a handwheel actuator and flanged connection, this valve offers easy operation and installation, making it ideal for industrial settings.
Ready to Grow Without Cash Flow Constraints?

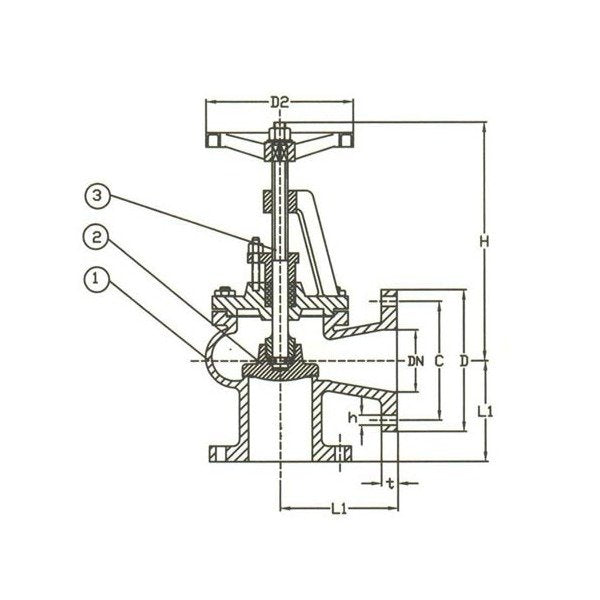

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
65 mm
Specifications Connection
Flanged Drilled
Specifications D
95 mm
Specifications D2
100 mm
Specifications Disc Material
Bronze
Specifications H
160 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
65 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
015
Specifications Stem Material
Brass
Specifications T
14 mm
Specifications Weight
4.0 kg
