Bronze Angle SDNR Valve - PN 16 DIN Bronze Valve

Name: Bronze Angle SDNR Valve - PN 16 DIN Bronze Valve
Brand: World Wide Metric, Inc.
SKU: VAL-6c2f14
Price: 199.99 USD
Availability: OutOfStock

SKU:VAL-6c2f14

High-quality Bronze Angle Valve with PN 16 rating, ideal for hydraulic systems. Meets DIN standards.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Angle Bolted Bonnet SDNR Valve, designed to meet stringent DIN standards, features a gunmetal body, bronze seat, disc, and stem options in brass or stainless steel. With a compact size of 95mm length and 105mm diameter, this valve is ideal for hydraulic applications with a working pressure of PN16. The handwheel actuator allows for easy operation, while the flanged connection ensures secure installation according to DIN2501. Weighing 4.2 kg, this valve offers reliability and durability in fluid control systems.

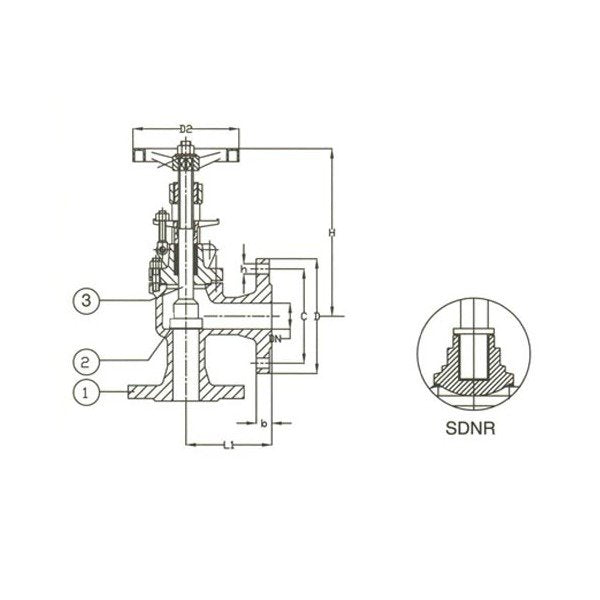

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

75 mm

Specifications Connection

Flanged Drilled

Specifications D

105 mm

Specifications D2

100 mm

Specifications Disc Material

Bronze

Specifications H

165 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

95 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

020

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

4.2 kg
