Bronze Angle Valve Bolted Bonnet - Short Pattern Valve, PN 16

Name: Bronze Angle Valve Bolted Bonnet - Short Pattern Valve, PN 16
Brand: World Wide Metric, Inc.
SKU: VAL-0588db
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-0588db

Durable Bronze Angle Valve Bolted Bonnet - Perfect for Industrial Use

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Angle Valve Bolted Bonnet is a robust and reliable valve designed for industrial applications. Constructed with high-quality bronze body, seat, and disc materials, this valve ensures durability and corrosion resistance. Its brass stem and handwheel actuators provide smooth operation and precise control. Compliant with DIN standards, featuring a flanged connection for easy installation, this valve is ideal for hydraulic systems requiring a PN of 16. With precise dimensions and a weight of 127 kg, this valve offers dependable performance in demanding environments.

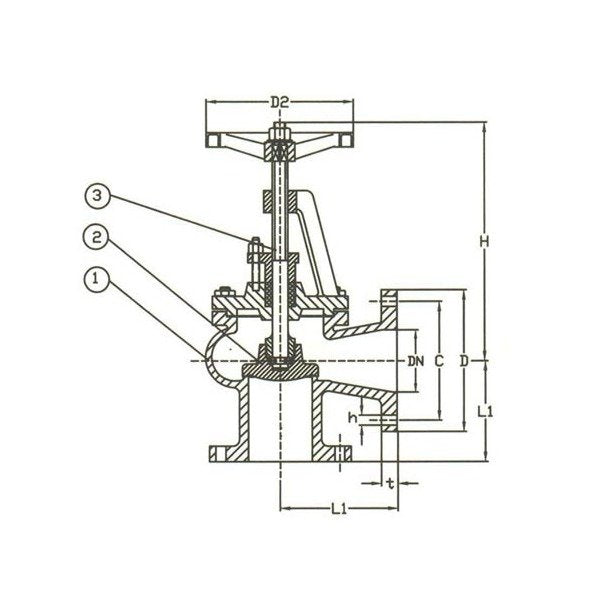

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

295 mm

Specifications Connection

Flanged Drilled

Specifications D

340 mm

Specifications D2

420 mm

Specifications Disc Material

Bronze

Specifications H

600 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

250 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

200

Specifications Stem Material

Brass

Specifications T

30 mm

Specifications Weight

127 kg

Bronze Angle Valve Bolted Bonnet - Short Pattern Valve, PN 16
