Bronze Angle Valve, Class 150 - Bolted Bonnet, OS&Y
Bronze Angle Valve, Class 150 - Bolted Bonnet, OS&Y
SKU:VAL-cb554d
Reliable Class 150 Bronze Angle Valve for industrial use, compliant with ANSI standards.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Bronze Angle Valve, Class 150 - Bolted Bonnet, OS&Y
$329.99
Quantity: 1
Claim Your Seller Account
Bronze Angle Valve, Class 150 - Bolted Bonnet, OS&Y
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Angle Valve, Class 150, features a bolted bonnet with outside screw and yoke (OS&Y) design for enhanced durability and ease of maintenance. Constructed with high-quality materials including Bronze body, Stainless Steel seat and disc, and Stainless Steel stem, this valve ensures reliable performance in demanding industrial applications. The valve is compliant with ANSI standards for size, hydraulic inspections, and flange dimensions, making it suitable for a wide range of institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?

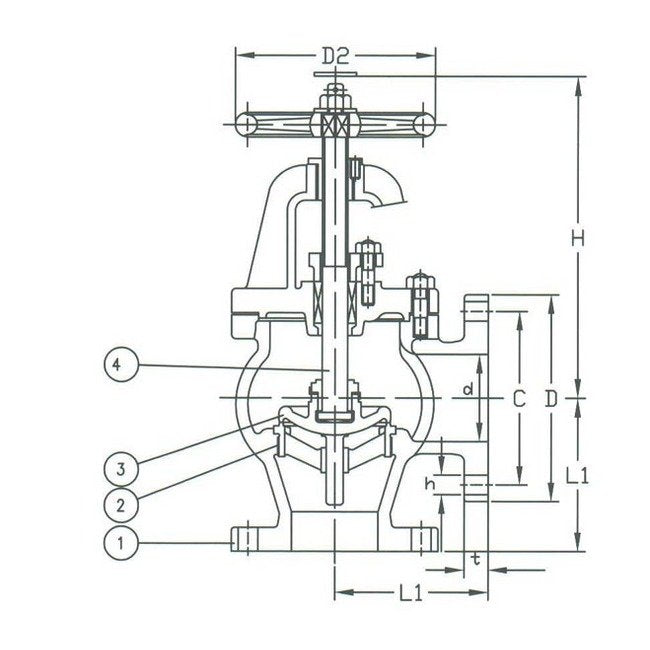

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
9.500 in | 241 mm
Specifications Connection
Flanged Drilled
Specifications D
11 in | 279 mm
Specifications D2
12.00 in | 305 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
21.50 in | 546 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8 in | 203 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
6"
Specifications Stem Material
Stainless Steel
Specifications T
0.81 in | 21 mm
Specifications Weight
154 lb | 70.0 kg
