Bronze Angle Valve Class 150 - Bolted Bonnet, OS&Y, SDNR
Bronze Angle Valve Class 150 - Bolted Bonnet, OS&Y, SDNR
SKU:VAL-a8b129
Durable Class 150 Bronze Angle Valve with Bolted Bonnet, OS&Y, SDNR - ANSI Standards Compliant
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Bronze Angle Valve Class 150 - Bolted Bonnet, OS&Y, SDNR
$349.99
Quantity: 1
Claim Your Seller Account
Bronze Angle Valve Class 150 - Bolted Bonnet, OS&Y, SDNR
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Angle Valve Class 150 with Bolted Bonnet, OS&Y, and SDNR features a durable construction with a bronze body, stainless steel seat, and a choice of bronze or stainless steel disc ring. Designed to meet ANSI standards, this valve ensures reliable performance in demanding environments. With a handwheel actuator and flanged connection, it offers easy operation and installation for industrial applications.

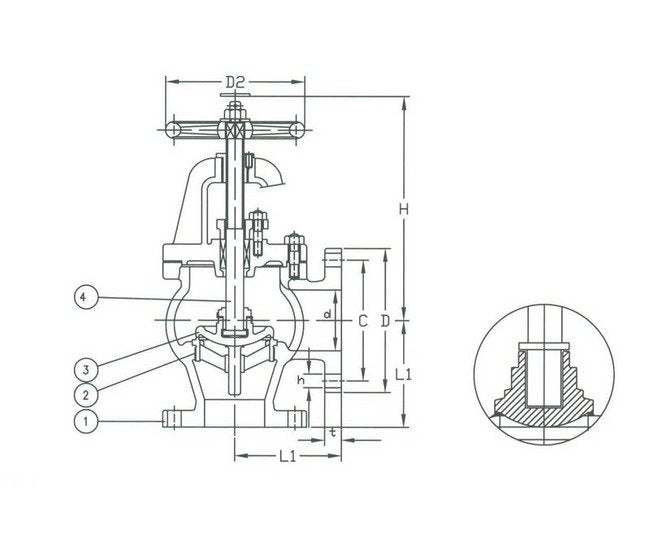

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
4.75 in | 121 mm
Specifications Connection
Flanged Drilled
Specifications D
6 in | 152 mm
Specifications D2
6.00 in | 152 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
11.12 in | 282 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.00 in | 102 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
2"
Specifications Stem Material
Stainless Steel
Specifications T
0.50 in | 13 mm
Specifications Weight
33 lb | 15.0 kg
