Bronze Angle Valve Class 150 - OS&Y, SDNR
Bronze Angle Valve Class 150 - OS&Y, SDNR
SKU:VAL-804618
Durable Class 150 Bronze Angle Valve with Bolted Bonnet - Ideal for high-pressure applications
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Bronze Angle Valve Class 150 - OS&Y, SDNR
$399.99
Quantity: 1
Claim Your Seller Account
Bronze Angle Valve Class 150 - OS&Y, SDNR
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

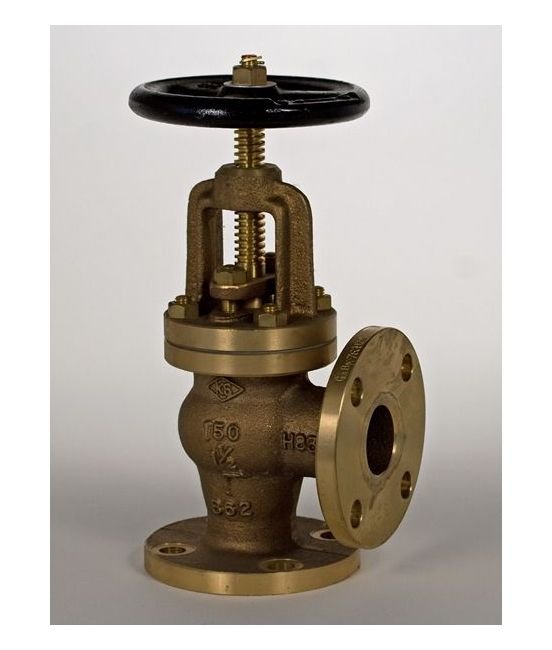

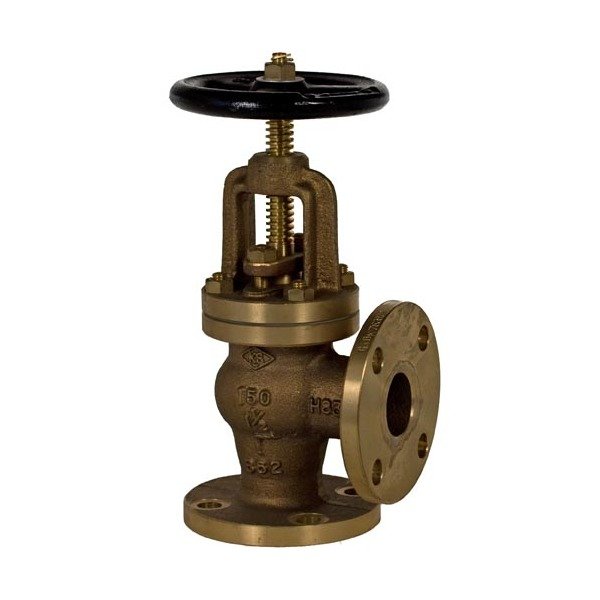

The Bronze Angle Valve Class 150 with Bolted Bonnet features a durable bronze body with stainless steel seat and disc materials for superior strength and corrosion resistance. With ANSI B16.10 face-to-center alignment and ANSI B16.24 Class 150 flanges, this valve ensures precise operation and seamless integration. Its 6" size, hydraulic inspection ratings of 350 PSIG for shell and 225 PSIG for seat, along with sturdy construction, make it ideal for high-pressure applications. The handwheel actuators allow easy manual operation, meeting the rigorous demands of institutional and government procurement standards.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze

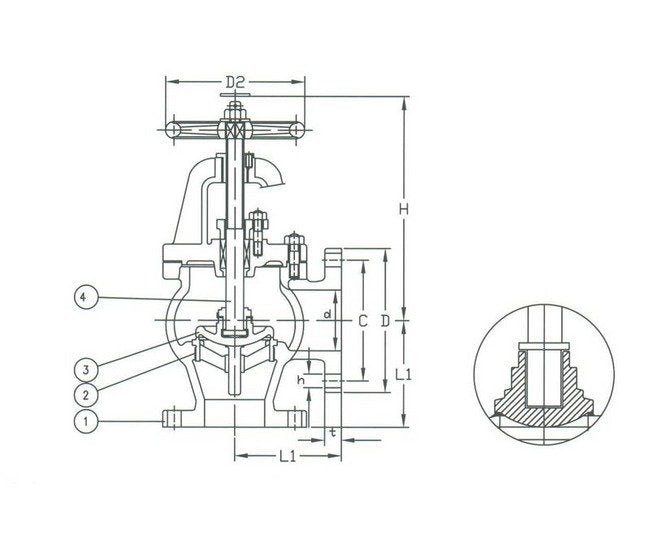

Specifications C
9.500 in | 241 mm
Specifications Connection
Flanged Drilled
Specifications D
11 in | 279 mm
Specifications D2
12.00 in | 305 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
21.50 in | 546 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8 in | 203 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
6"
Specifications Stem Material
Stainless Steel
Specifications T
0.81 in | 21 mm
Specifications Weight
154 lb | 70.0 kg
