Bronze Angle Valve PN16 - Short Pattern for DIN Applications

Name: Bronze Angle Valve PN16 - Short Pattern for DIN Applications
Brand: World Wide Metric, Inc.
SKU: VAL-3f6892
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-3f6892

Premium quality PN16 Bronze Angle Valve for DIN applications, featuring durable construction and DIN2501-PN16 flanges.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

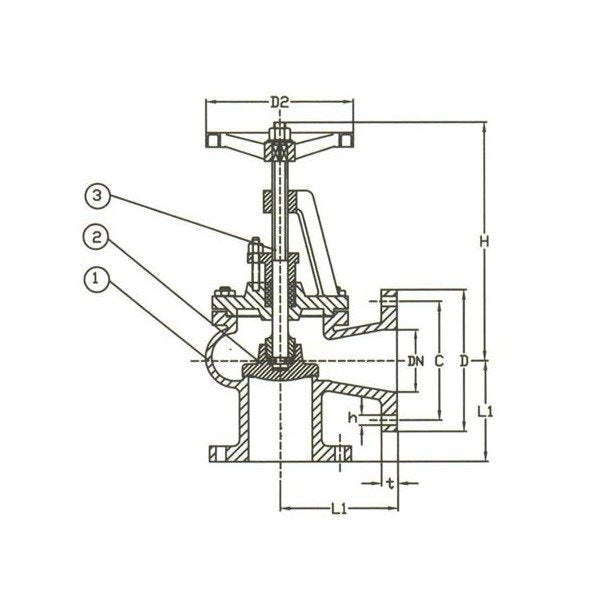

The PN 16 Bronze Angle Bolted Bonnet - Short Pattern Valve is a durable and reliable solution for industrial applications. Constructed with high-quality bronze body, seat, and disc, along with a brass stem, this valve meets stringent DIN standards ensuring superior performance. The valve features flanges according to DIN2501-PN16, providing secure connections. With dimensions suited for various installations, this valve offers ease of operation with a handwheel actuator.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

240 mm

Specifications Connection

Flanged Drilled

Specifications D

285 mm

Specifications D2

300 mm

Specifications Disc Material

Bronze

Specifications H

405 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

200 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

150

Specifications Stem Material

Brass

Specifications T

26 mm

Specifications Weight

89.00 kg
