Bronze Angle Valve with Bolted Bonnet - PN 16, DIN Certified

Name: Bronze Angle Valve with Bolted Bonnet - PN 16, DIN Certified
Brand: World Wide Metric, Inc.
SKU: VAL-d14072
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-d14072

High-quality Bronze Angle Valve with bolted bonnet, DIN certified. Ideal for industrial hydraulic systems.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

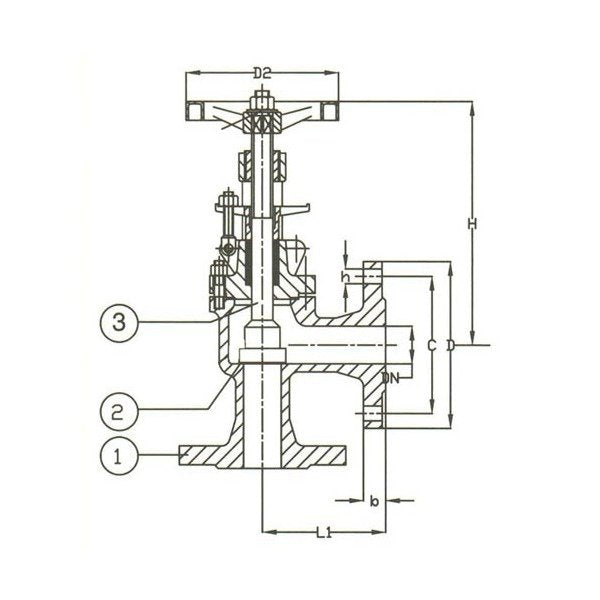

The Bronze Angle Bolted Bonnet Regular Valve is a reliable solution designed to meet DIN standards for industrial applications. Constructed with high-quality bronze body, disc, and seat, along with a brass stem, this valve ensures durability and resistance to corrosion. With Flanges according to DIN2501-PN16 standards, it offers a secure connection. The handwheel actuator allows for manual operation, making it versatile for various settings. Sized at 032 with Hydraulic Inspections conforming to specifications, this valve guarantees optimal performance and longevity in hydraulic systems.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

100 mm

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications D2

125 mm

Specifications Disc Material

Bronze

Specifications H

200 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

105 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

032

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

7.6 kg

Bronze Angle Valve with Bolted Bonnet - PN 16, DIN Certified
