Bronze Angle Valve with Bolted Bonnet - PN 16 Short Pattern
Bronze Angle Valve with Bolted Bonnet - PN 16 Short Pattern
SKU:VAL-6f1fb3
Durable PN 16 Bronze Angle Valve with Bolted Bonnet for reliable performance in diverse applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Bronze Angle Valve with Bolted Bonnet - PN 16 Short Pattern
$249.99
Quantity: 1
Claim Your Seller Account
Bronze Angle Valve with Bolted Bonnet - PN 16 Short Pattern
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Bronze Angle Bolted Bonnet Short Pattern Valve is expertly crafted with a gunmetal body, brass stem, and bronze disc, ensuring durability and reliability in diverse applications. Compliant with DIN standards, this valve features a flanged connection and is equipped with a handwheel actuator for easy operation. With precise hydraulic inspections and premium materials, it offers superior performance and longevity.
Ready to Grow Without Cash Flow Constraints?

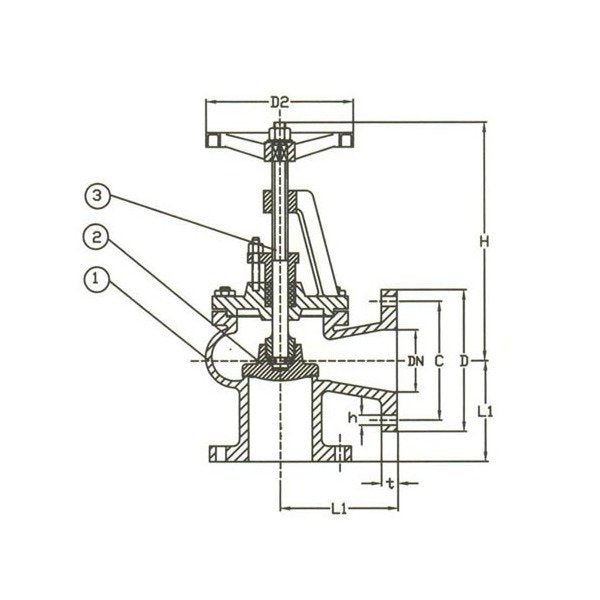

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
145 mm
Specifications Connection
Flanged Drilled
Specifications D
185 mm
Specifications D2
200 mm
Specifications Disc Material
Bronze
Specifications H
235 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
115 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
065
Specifications Stem Material
Brass
Specifications T
20 mm
Specifications Weight
23.0 kg
