Bronze Ball Valve - Solder End, Full Port 2-Piece Body
Bronze Ball Valve - Solder End, Full Port 2-Piece Body
SKU:VAL-3f71d6
Durable Cast Bronze Ball Valve with 2-Piece Body, PTFE Seats, and Full Port Design for optimal performance in various applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Bronze Ball Valve - Solder End, Full Port 2-Piece Body
$45.99
Quantity: 1
Claim Your Seller Account
Bronze Ball Valve - Solder End, Full Port 2-Piece Body
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Cast Bronze Ball Valve is crafted for durability with a two-piece forged brass body, ensuring maintenance-free operation. Featuring double o-ring stem seals, vented chrome-plated ball, and blowout-proof stem with PTFE seats, this valve is designed to handle various pressures and temperatures. Meeting MSS-SP 110 and KITZ standards, it is pressure-rated up to 150 PSI for saturated steam and 600 PSI for water, oil, or gas applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

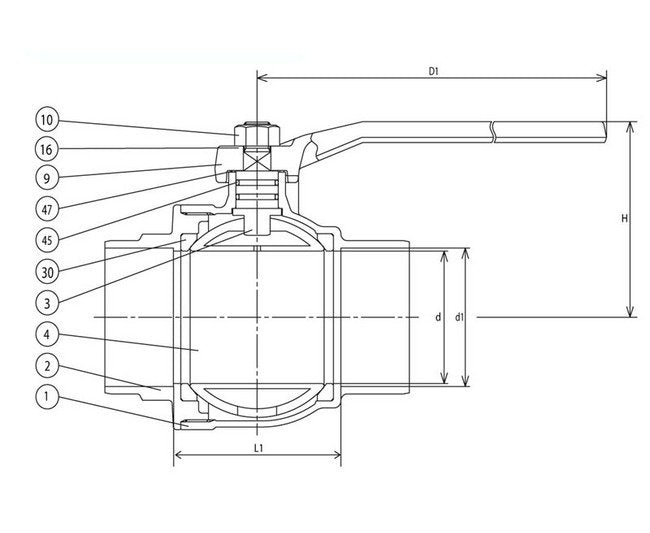

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) (4") Cast Bronze (B584, C84400) 2 Body Cap Forged Brass (B283, C37700) (4") Cast Bronze (B584, C84400) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (Ni-Cr Plating) 9 Handle Ductile Iron 10 Handle Nut Carbon Steel 16 Name Plate Aluminum 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PTFE
Specifications Approx Net Wt
30.00
Specifications Carton Qty
2
Specifications Class
CSZA
Specifications Dimension D
2.99
Specifications Dimension D1
11.81
Specifications Dimension D1 Max
3.133
Specifications Dimension D1 Min
3.128
Specifications Dimension D2
3 inches
Specifications Dimension H
4.42
Specifications Dimension L
6.57
Specifications Dimension L1
4.06
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body , blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Standard End Connections Threaded ASME B1.20.1 Solder Joint ASME B16.18 Wall Thickness KITZ Standard Conforms to Mss-SP 110 - Replaces us. FED. SPEC.WWW-35B, Type II, Class A, Type 3
