Bronze Check IB944 Horizontal Swing Valve
Bronze Check IB944 Horizontal Swing Valve
SKU:VAL-13945f
Durable Bronze Check Valve for high-pressure applications, conforms to MSS SP-80 standards. Ideal for various settings.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Bronze Check IB944 Horizontal Swing Valve
$129.99
Quantity: 1
Claim Your Seller Account
Bronze Check IB944 Horizontal Swing Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Check IB944 Horizontal Swing Valve is designed for high-pressure applications with a working pressure of 200 lb and a temperature range up to 425°F. Made of durable cast bronze, this valve features a Y-pattern design with threaded ends for easy installation. It conforms to MSS SP-80 Type 3, Class 200 standards, ensuring reliable performance and longevity. With a regrinding disc and sturdy construction, this valve is ideal for both consumer and institutional use.
Product Specifications

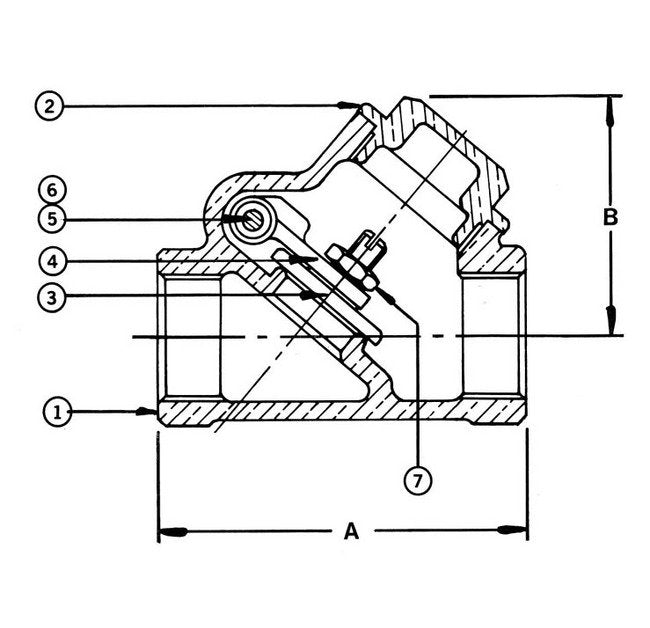

Material List 0
No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
76.20 mm
Specifications Dimension B
49.23 mm
Specifications Material
Bronze
Specifications Size
19.05 mm
