Bronze Check Valve Class 125, Solder End 1/2"

Bronze Check Valve Class 125, Solder End 1/2"

VAL-0851ed

High-quality Bronze Check Valve for precise flow control in hose beds with Y-pattern swing type disc and solder end connection. Meets MSS SP-80 and ANSI standards.

$32.99
$32.99
Sale

Initiate Order

Bronze Check Valve Class 125, Solder End 1/2"

Bronze Check Valve Class 125, Solder End 1/2"

$32.99

Quantity: 1

Claim Your Seller Account

Bronze Check Valve Class 125, Solder End 1/2"

Bronze Check Valve Class 125, Solder End 1/2"

$32.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Bronze Check Class 125 Valve is a reliable solution for fluid control applications in hose beds. Featuring a Y-pattern swing type disc and integral seat design, this valve ensures efficient flow regulation and prevention of backflow. With a pressure rating of 125 PSI for fluids up to 406°F and 125 PSI for saturated steam up to 353°F, it meets stringent industry standards such as MSS SP-80 and ANSI specifications. Built with quality materials including cast bronze and forged brass, this valve guarantees durability and longevity in diverse operational environments.

Product Specifications

Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
0.52
Specifications Carton Qty
96
Specifications Class
CYR

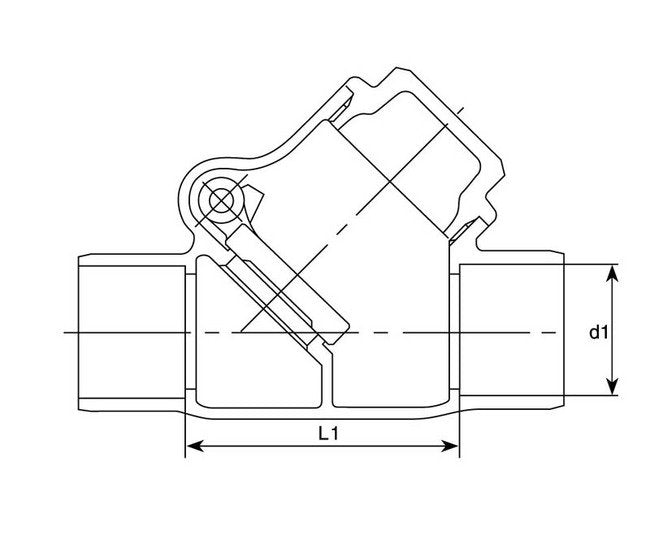

Specifications Dimension D1 Max
0.631
Specifications Dimension D1 Min
0.627
Specifications Dimension D2
1/2 inches
Specifications Dimension H
1.57
Specifications Dimension L
2.20
Specifications Dimension L1
1.64
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
