Bronze Check Valve Class 125 - Solder End, 3 inches

Name: Bronze Check Valve Class 125 - Solder End, 3 inches
Brand: Caylor Industrial Sales, Inc.
SKU: VAL-0b45ec
Price: 89.99 USD
Availability: OutOfStock

SKU:VAL-0b45ec

Reliable Bronze Check Valve Class 125 for precise flow control in fluid and steam applications. Meets CYR standards.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Check Valve Class 125 is a reliable valve designed for optimal performance in fluid and steam applications. Featuring a screw cap, integral seat, and Y-pattern swing type disc, this valve ensures efficient flow control and minimal pressure drops. With a pressure rating of 125 PSI for fluid, 125 PSI for saturated steam, and 200 PSI for cold water, oil, or gas, this valve meets stringent Class CYR standards. Crafted from high-quality bronze material, this valve is durable and long-lasting, making it a perfect choice for institutional and government procurement needs.

Product Specifications

Material List 0

No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)

Specifications Approx Net Wt

11.00

Specifications Carton Qty

Specifications Class

CYR

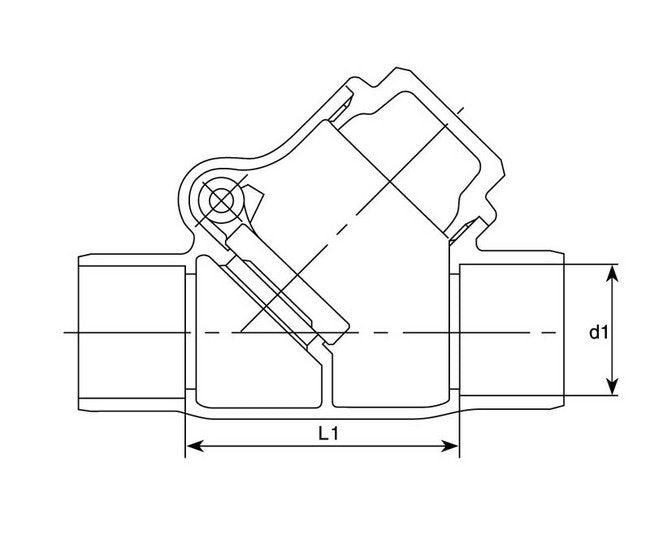

Specifications Dimension D1 Max

3.133

Specifications Dimension D1 Min

3.128

Specifications Dimension D2

3 inches

Specifications Dimension H

5.16

Specifications Dimension L

7.24

Specifications Dimension L1

5.42

Specifications End Size

Solder

Specifications Material

Bronze

Specifications Pressuretemperature

125 PSI - Fluid to 406Â°F | 125 PSI - Saturated Steam to 353Â°F | 200 PSI - Non-Shock Cold Water, Oil or Gas

Standard 0

End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
