Bronze Check Valve Class 125, Threaded End 3/4"
Bronze Check Valve Class 125, Threaded End 3/4"
SKU:VAL-913a50
High-performing Bronze Check Valve, Class 125 Pressure/Temperature, suitable for diverse applications.
Regular price
$38.99
Regular price
Sale price
$38.99
Unit price
per
Initiate Order
Bronze Check Valve Class 125, Threaded End 3/4"
$38.99
Quantity: 1
Claim Your Seller Account
Bronze Check Valve Class 125, Threaded End 3/4"
$38.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Check Valve Class 125 is a high-performance valve suitable for various applications, featuring a screw cap design with an integral seat and Y-pattern swing type disc. With a maximum pressure rating of 125 PSI for fluid and saturated steam, and 200 PSI for cold water, oil, or gas, this valve ensures reliable and precise flow control. Constructed from durable bronze material and meeting industry standards such as ANSI B1.20.1 for threaded ends and ANSI B16.18 for solder joint ends, this valve offers exceptional performance and longevity.
Product Specifications

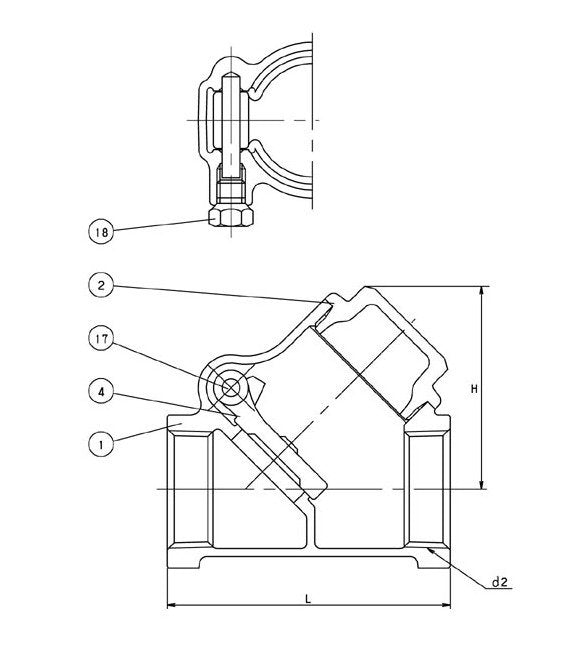

Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
0.88
Specifications Carton Qty
60
Specifications Class
AKYR
Specifications Dimension D1 Max
0.881
Specifications Dimension D1 Min
0.877
Specifications Dimension D2
3/4 inches
Specifications Dimension H
1.93
Specifications Dimension L
2.76
Specifications Dimension L1
1.88
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
