Bronze Check Valve Class 125, Y-Pattern Swing Type, Solder End, 1 1/4 inches

Bronze Check Valve Class 125, Y-Pattern Swing Type, Solder End, 1 1/4 inches

VAL-6cd22e

High-quality Bronze Check Valve with Y-Pattern Swing Disc for precise flow control and durability. Threaded and solder ends for versatile applications.

$39.99
$39.99
Sale

Initiate Order

Bronze Check Valve Class 125, Y-Pattern Swing Type, Solder End, 1 1/4 inches

Bronze Check Valve Class 125, Y-Pattern Swing Type, Solder End, 1 1/4 inches

$39.99

Quantity: 1

Claim Your Seller Account

Bronze Check Valve Class 125, Y-Pattern Swing Type, Solder End, 1 1/4 inches

Bronze Check Valve Class 125, Y-Pattern Swing Type, Solder End, 1 1/4 inches

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Check Class 125 Bronze Valve features a screw cap design with integral seat, ensuring reliable performance. Its Y-Pattern Swing Type Disc enhances flow control and minimizes pressure drop. This valve is crafted from high-quality bronze, meeting military-grade standards for durability and performance. With threaded and solder ends, this valve is suitable for a wide range of applications. Pressure/Temperature rating of 125 PSI up to 406°F makes it ideal for fluid, steam, water, oil, or gas systems.

Product Specifications

Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
2.04
Specifications Carton Qty
24
Specifications Class
CYR

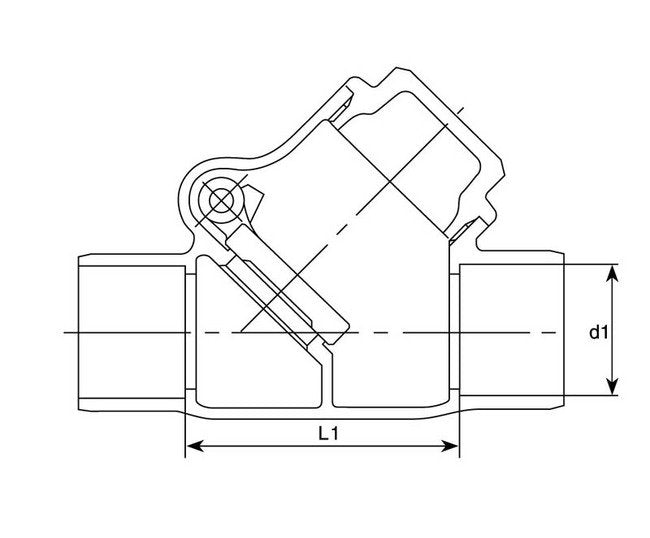

Specifications Dimension D1 Max
1.382
Specifications Dimension D1 Min
1.378
Specifications Dimension D2
1 1/4 inches
Specifications Dimension H
2.80
Specifications Dimension L
3.74
Specifications Dimension L1
2.83
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
