Bronze Class 125 Y-Pattern Swing Disc Check Valve - Threaded End, 1.5 inches
Bronze Class 125 Y-Pattern Swing Disc Check Valve - Threaded End, 1.5 inches
SKU:VAL-5be7f9
High-quality Bronze Class 125 Y-Pattern Swing Disc Check Valve for efficient fluid control. Screw cap, Y-pattern swing disc.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Bronze Class 125 Y-Pattern Swing Disc Check Valve - Threaded End, 1.5 inches
$89.99
Quantity: 1
Claim Your Seller Account
Bronze Class 125 Y-Pattern Swing Disc Check Valve - Threaded End, 1.5 inches
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Class 125 Y-Pattern Swing Disc Check Valve is a high-quality valve designed for efficient fluid control in hose bed applications. Featuring a screw cap with integral seat and Y-pattern swing type disc, this valve ensures reliable performance in demanding environments. With a working pressure of 125 PSI and temperature range up to 406°F for fluids and 353°F for saturated steam, this valve is built to handle various applications. It complies with ANSI, MSS, and military standards, offering durability and precision for your institutional needs.
Product Specifications

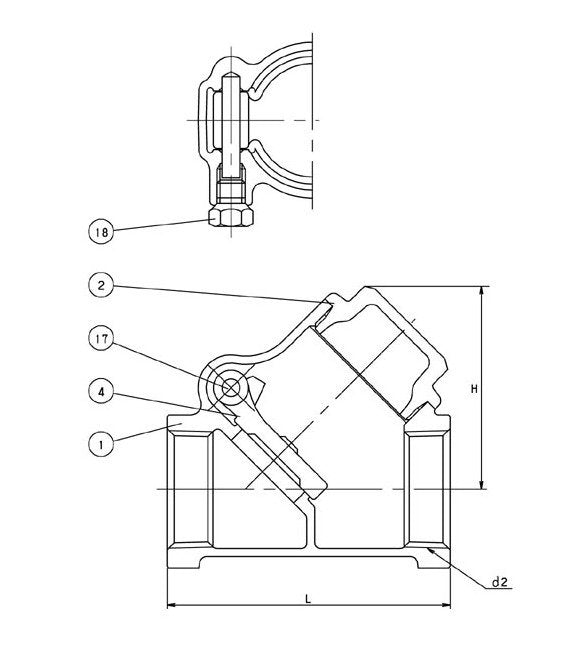

Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
2.78
Specifications Carton Qty
18
Specifications Class
AKYR
Specifications Dimension D1 Max
1.633
Specifications Dimension D1 Min
1.628
Specifications Dimension D2
1 1/2 inches
Specifications Dimension H
3.15
Specifications Dimension L
4.33
Specifications Dimension L1
3.21
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
