Bronze Class 150 Angle Valve, Bolted Bonnet - OS&Y, SDNR

Name: Bronze Class 150 Angle Valve, Bolted Bonnet - OS&Y, SDNR
Brand: World Wide Metric, Inc.
SKU: VAL-d14b5d
Price: 149.99 USD
Availability: OutOfStock

SKU:VAL-d14b5d

Reliable Bronze Angle Valve for precise fluid control in industrial applications. Handwheel-operated for ease of use.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Class 150 Angle Valve with Bolted Bonnet and Outside Screw & Yoke (OS&Y) design offers superior durability and performance. Crafted from high-quality bronze, brass, and stainless steel materials, this valve ensures reliable operation in various industrial settings. With precise dimensions meeting ANSI standards, including flanges conforming to ANSI B16.24 Class 150, this valve is designed for efficient fluid control. The handwheel-operated actuators provide ease of use, making it ideal for demanding applications requiring precision and longevity.

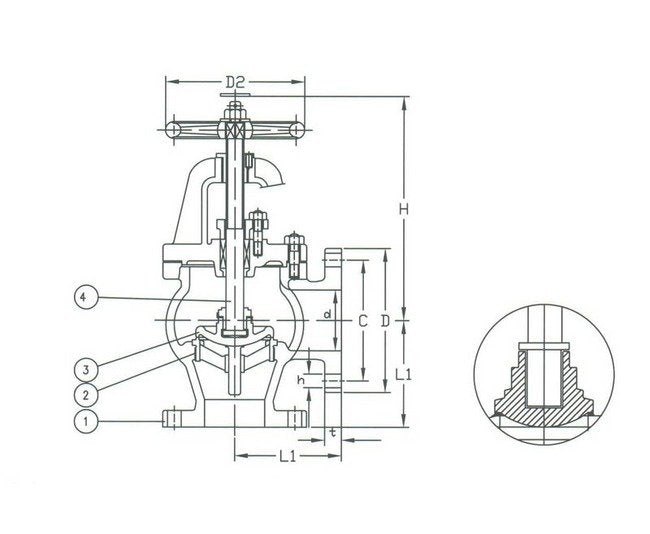

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

3.50 in

Specifications Connection

Flanged Drilled

Specifications D

4.63 in

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

0.63 in | 16 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications L

3.00 in

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

1-1/4"

Specifications Stem Material

Brass

Bronze Class 150 Angle Valve, Bolted Bonnet - OS&Y, SDNR
