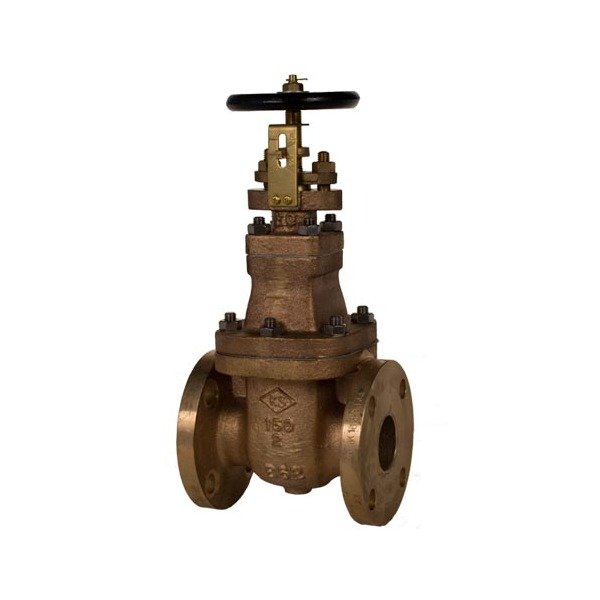

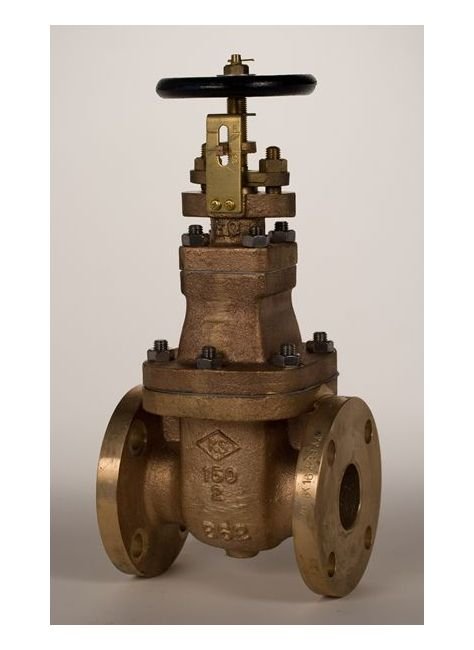

Bronze Class 150 NRS Gate Valve - Bolted Bonnet

Name: Bronze Class 150 NRS Gate Valve - Bolted Bonnet
Brand: World Wide Metric, Inc.
SKU: VAL-b09ea3
Price: 699.99 USD
Availability: OutOfStock

SKU:VAL-b09ea3

Durable Bronze Class 150 NRS Gate Valve - Perfect for Fluid Control

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Class 150 NRS Gate Valve with a Bolted Bonnet and Non-Rising Stem is a durable and reliable solution for controlling fluid flow. Crafted with high-quality bronze and stainless steel components, this valve ensures longevity and performance. Meeting ANSI B16.10 face-to-face dimensions and ANSI B16.24 Class 150 flange standards, it guarantees seamless integration into existing systems. With hydraulic inspections rated at 350 PSIG for the shell and 225 PSIG for the seat, this valve offers optimal pressure control and safety. The handwheel actuator provides easy manual operation, making it ideal for various industrial applications.

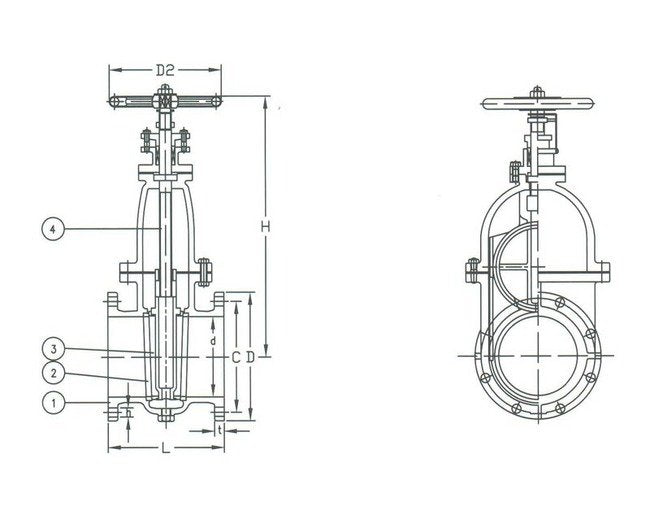

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

17 in | 432 mm

Specifications Connection

Flanged Drilled

Specifications D

19.00 in | 483 mm

Specifications D2

15.00 in | 381 mm

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

33.25 in | 845 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications L

14 in | 356 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

12"

Specifications Stem Material

Brass

Specifications T

1.06 in | 27 mm

Specifications Weight

636 lb | 289 kg

Bronze Class 150 NRS Gate Valve - Bolted Bonnet
