The Bronze Class 150 Strainer features a Y-Pattern design with threaded cap and ends, making it ideal for Valve applications in Hose Beds. Constructed with premium materials including Cast Bronze body, Forged Brass cap, and Stainless Steel punched screen, this strainer offers high durability and reliability. Designed for a Class AKYU rating and pressure/temperature compatibility up to 150 PSI and 406°F for fluids, 150 PSI and 366°F for saturated steam, and 300 PSI for non-shock cold water, oil, or gas. With dimensions of 2 1/2 inches (d2), 5.83 inches (H), 9.06 inches (L), and a weight of 13.00 lbs, it ensures efficient filtration in industrial applications while meeting Prop 65 compliance standards, ensuring safe use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

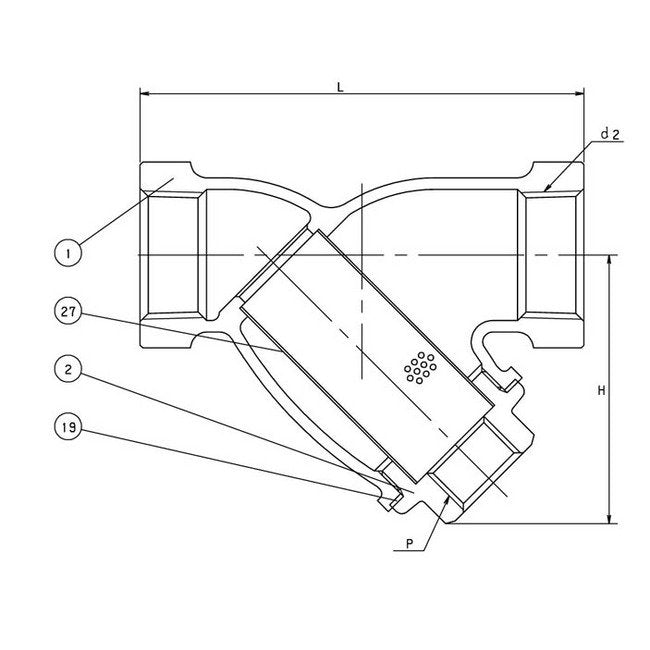

No. Name of Part Specification 1 Body Cast Bronze (B584, C84400) 2 Cap Forged Brass (B283, C37700) 19 Gasket Non-Asbestos Sheet 27 Screen Stainless Steel (A167, Type 304) Cap supplied without plug. Blind cap optionally available.
Specifications Approx Net Wt
13.00
Specifications Carton Qty
1
Specifications Class
AKYU
Specifications Dimension D1 Max
2.633
Specifications Dimension D1 Min
2.628
Specifications Dimension D2
2 1/2 inches
Specifications Dimension H
5.83
Specifications Dimension L
9.06
Specifications Dimension P
1 1/4
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Design KITZ
