Bronze Class 150 Strainer

Bronze Class 150 Strainer

VAL-444f0a

High-quality Bronze Class 150 Strainer with Y-Pattern Threaded Cap and Ends for efficient filtration in industrial settings.

$79.99
$79.99
Sale

Initiate Order

Bronze Class 150 Strainer

Bronze Class 150 Strainer

$79.99

Quantity: 1

Claim Your Seller Account

Bronze Class 150 Strainer

Bronze Class 150 Strainer

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Bronze Class 150 Strainer is designed with precision, featuring Y-Pattern Threaded Cap and Ends to ensure efficient filtration in industrial applications. Crafted with high-quality materials like Cast Bronze and Stainless Steel, this strainer offers durability and reliability. With a pressure tolerance of 150 PSI and compatibility with fluids up to 406°F, this strainer excels in maintaining optimal flow rates. The threaded ends adhere to ANSI B1.20.1 standards, making it suitable for a wide range of installations. Ideal for valves and hose beds, this strainer is a dependable choice for both consumer and institutional buyers.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0

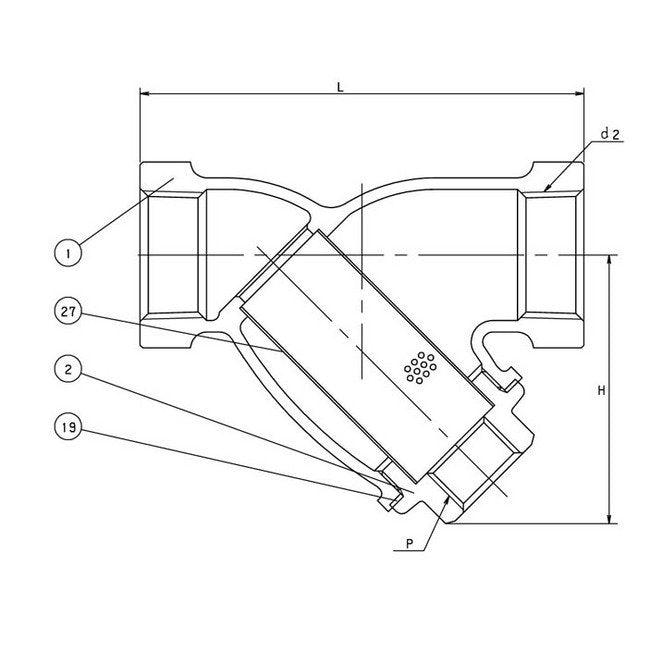

No. Name of Part Specification 1 Body Cast Bronze (B584, C84400) 2 Cap Forged Brass (B283, C37700) 19 Gasket Non-Asbestos Sheet 27 Screen Stainless Steel (A167, Type 304) Cap supplied without plug. Blind cap optionally available.
Specifications Approx Net Wt
4.31
Specifications Carton Qty
16
Specifications Class
AKYU
Specifications Dimension D1 Max
1.633
Specifications Dimension D1 Min
1.628
Specifications Dimension D2
1 1/2 inches
Specifications Dimension H
3.82
Specifications Dimension L
6.30
Specifications Dimension L1
4.51
Specifications Dimension P
3/4
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Design KITZ
