Bronze Class 150 Strainer Valve

Bronze Class 150 Strainer Valve

VAL-8d501a

Enhance efficiency with the Bronze Class 150 Strainer Valve for precise filtering and reliable performance in various applications.

$59.99
$59.99
Sale

Initiate Order

Bronze Class 150 Strainer Valve

Bronze Class 150 Strainer Valve

$59.99

Quantity: 1

Claim Your Seller Account

Bronze Class 150 Strainer Valve

Bronze Class 150 Strainer Valve

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your valves with the Bronze Class 150 Strainer Valve, featuring a Y-Pattern design with Threaded Cap and Ends for secure installation. Constructed from durable Bronze material, this strainer includes a Stainless Steel (304) Punched Screen suitable for various applications. With a pressure rating of 150 PSI for fluids up to 406°F and 150 PSI for saturated steam, this strainer meets industry standards while offering optional mesh screen variations. Compatible with ANSI B1.20.1 Threaded Ends and ANSI B16.18 Solder Joint Ends, this valve ensures reliable performance and easy maintenance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

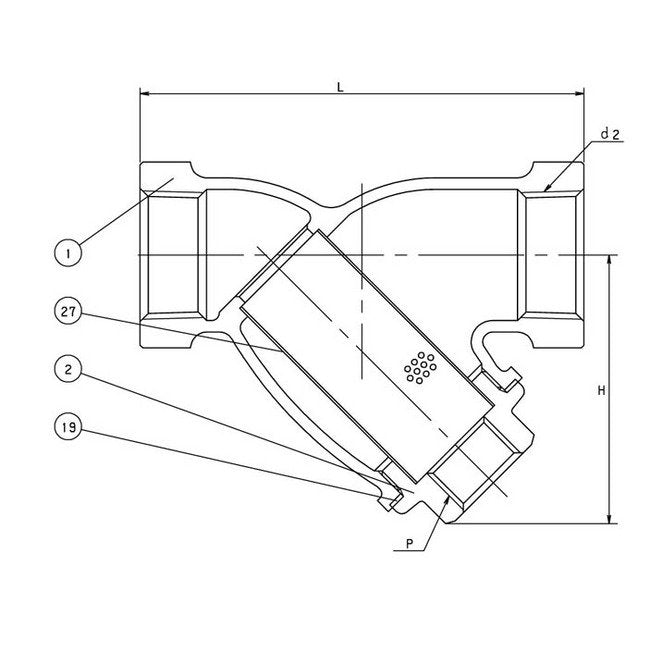

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (B584, C84400) 2 Cap Forged Brass (B283, C37700) 19 Gasket Non-Asbestos Sheet 27 Screen Stainless Steel (A167, Type 304) Cap supplied without plug. Blind cap optionally available.
Specifications Approx Net Wt
1.86
Specifications Carton Qty
36
Specifications Class
AKYU
Specifications Dimension D1 Max
1.132
Specifications Dimension D1 Min
1.128
Specifications Dimension D2
1 inches
Specifications Dimension H
2.80
Specifications Dimension L
4.53
Specifications Dimension L1
3.10
Specifications Dimension P
1/2
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Design KITZ
