Bronze Class 150 Strainer Valve

Bronze Class 150 Strainer Valve

VAL-679040

High-performance Bronze Class 150 Strainer Valve for industrial use. Pressure-rated up to 150 PSI, ideal for diverse applications.

$69.99
$69.99
Sale

Initiate Order

Bronze Class 150 Strainer Valve

Bronze Class 150 Strainer Valve

$69.99

Quantity: 1

Claim Your Seller Account

Bronze Class 150 Strainer Valve

Bronze Class 150 Strainer Valve

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Bronze Class 150 Strainer Valve is engineered for optimal performance in industrial applications. Constructed with durable cast bronze and featuring a Y-Pattern design, this valve ensures reliable operation with a stainless steel punched screen to filter debris effectively. With a pressure rating of 150 PSI and compatibility with fluid temperatures up to 406°F, this valve is suitable for diverse operational conditions. The Bronze Class 150 Strainer Valve is approved for use in non-potable water systems, meeting Prop 65 regulations and State of California standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (B584, C84400) 2 Cap Forged Brass (B283, C37700) 19 Gasket Non-Asbestos Sheet 27 Screen Stainless Steel (A167, Type 304) Cap supplied without plug. Blind cap optionally available.
Specifications Approx Net Wt
2.92
Specifications Carton Qty
24
Specifications Class
CYU

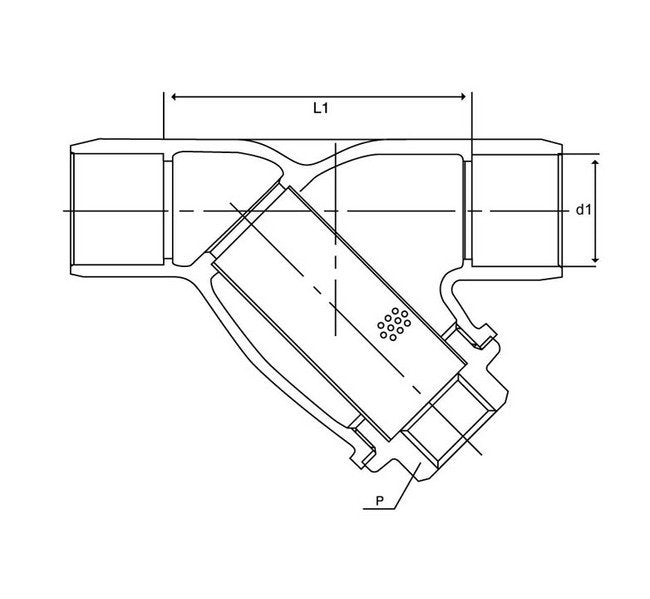

Specifications Dimension D1 Max
1.382
Specifications Dimension D1 Min
1.378
Specifications Dimension D2
1 1/4 inches
Specifications Dimension H
3.19
Specifications Dimension L
5.31
Specifications Dimension L1
3.77
Specifications Dimension P
1/2
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Design KITZ
