Bronze Class 150 Strainer Valve with Y-Pattern Threaded Cap

Bronze Class 150 Strainer Valve with Y-Pattern Threaded Cap

VAL-bdea61

Premium Bronze Class 150 Strainer Valve for efficient filtration in institutional and industrial settings.

$89.99
$89.99
Sale

Initiate Order

Bronze Class 150 Strainer Valve with Y-Pattern Threaded Cap

Bronze Class 150 Strainer Valve with Y-Pattern Threaded Cap

$89.99

Quantity: 1

Claim Your Seller Account

Bronze Class 150 Strainer Valve with Y-Pattern Threaded Cap

Bronze Class 150 Strainer Valve with Y-Pattern Threaded Cap

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Bronze Class 150 Strainer Valve with Y-Pattern Threaded Cap is designed for optimal performance in valve applications within institutional and industrial settings. Crafted with precision using high-quality components, this valve features a durable bronze body and a forged brass cap for lasting reliability. With a stainless steel punched screen (Type 304) and a standard 12 mesh screen, this valve ensures efficient filtration. Meeting Class AKYU specifications and rated for a pressure/temperature of 150 PSI to 406°F, it guarantees safe and effective operation. Ideal for handling non-shock cold water, oil, or gas at 300 PSI, this valve is a versatile and dependable choice for various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0

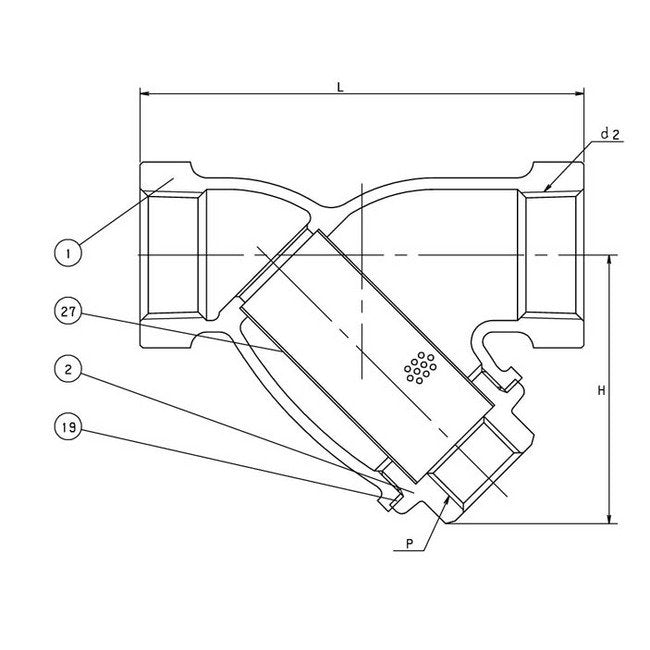

No. Name of Part Specification 1 Body Cast Bronze (B584, C84400) 2 Cap Forged Brass (B283, C37700) 19 Gasket Non-Asbestos Sheet 27 Screen Stainless Steel (A167, Type 304) Cap supplied without plug. Blind cap optionally available.
Specifications Approx Net Wt
0.76
Specifications Carton Qty
80
Specifications Class
AKYU
Specifications Dimension D1 Max
0.631
Specifications Dimension D1 Min
0.627
Specifications Dimension D2
1/2 inches
Specifications Dimension H
1.93
Specifications Dimension L
3.15
Specifications Dimension L1
2.15
Specifications Dimension P
1/4
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Design KITZ
