Bronze Class 150 Strainer with Y-Pattern and Stainless Steel Screen

Bronze Class 150 Strainer with Y-Pattern and Stainless Steel Screen

VAL-d66d05

Durable Class 150 Bronze Strainer with Y-Pattern, Stainless Steel Screen & Prop 65 Compliant

$59.99
$59.99
Sale

Initiate Order

Bronze Class 150 Strainer with Y-Pattern and Stainless Steel Screen

Bronze Class 150 Strainer with Y-Pattern and Stainless Steel Screen

$59.99

Quantity: 1

Claim Your Seller Account

Bronze Class 150 Strainer with Y-Pattern and Stainless Steel Screen

Bronze Class 150 Strainer with Y-Pattern and Stainless Steel Screen

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your equipment with the Bronze Class 150 Strainer featuring Y-Pattern design, threaded ends, and durable stainless steel screen. Engineered for industrial applications, this strainer ensures efficient filtration and corrosion resistance. With compliance to Prop 65 standard for safety, this strainer guarantees reliable performance at temperatures up to 406°F and pressures up to 150 PSI, ideal for non-potable water systems.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0

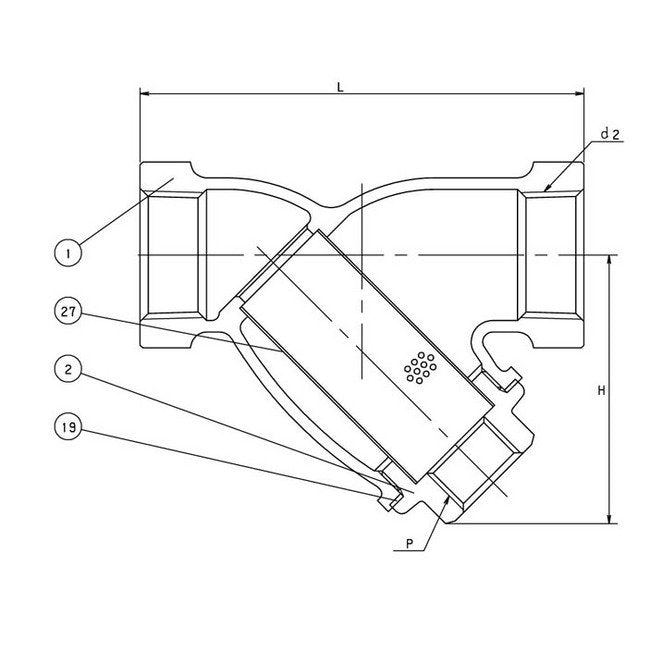

No. Name of Part Specification 1 Body Cast Bronze (B584, C84400) 2 Cap Forged Brass (B283, C37700) 19 Gasket Non-Asbestos Sheet 27 Screen Stainless Steel (A167, Type 304) Cap supplied without plug. Blind cap optionally available.
Specifications Approx Net Wt
1.29
Specifications Carton Qty
48
Specifications Class
AKYU
Specifications Dimension D1 Max
0.881
Specifications Dimension D1 Min
0.877
Specifications Dimension D2
3/4 inches
Specifications Dimension H
2.28
Specifications Dimension L
3.94
Specifications Dimension L1
2.63
Specifications Dimension P
1/4
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Design KITZ
