Bronze Class 150 Strainer with Y-Pattern Design

Bronze Class 150 Strainer with Y-Pattern Design

VAL-372818

Premium Bronze Class 150 Strainer for efficient fluid filtration in industrial applications.

$79.99
$79.99
Sale

Initiate Order

Bronze Class 150 Strainer with Y-Pattern Design

Bronze Class 150 Strainer with Y-Pattern Design

$79.99

Quantity: 1

Claim Your Seller Account

Bronze Class 150 Strainer with Y-Pattern Design

Bronze Class 150 Strainer with Y-Pattern Design

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Bronze Class 150 Strainer with Y-Pattern Design is a premium solution for efficient fluid filtration in industrial settings. Crafted with precision, this strainer features a threaded cap and ends made of durable bronze material. The stainless steel punched screen ensures reliable performance, offering approximately 12 mesh screen filtration. With a working pressure of 150 PSI and temperature resistance up to 406°F for fluids and 366°F for saturated steam, this strainer is engineered for high-pressure applications. The compact design and quality construction make it an ideal choice for hose bed valves, meeting the stringent standards of industrial operations.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0

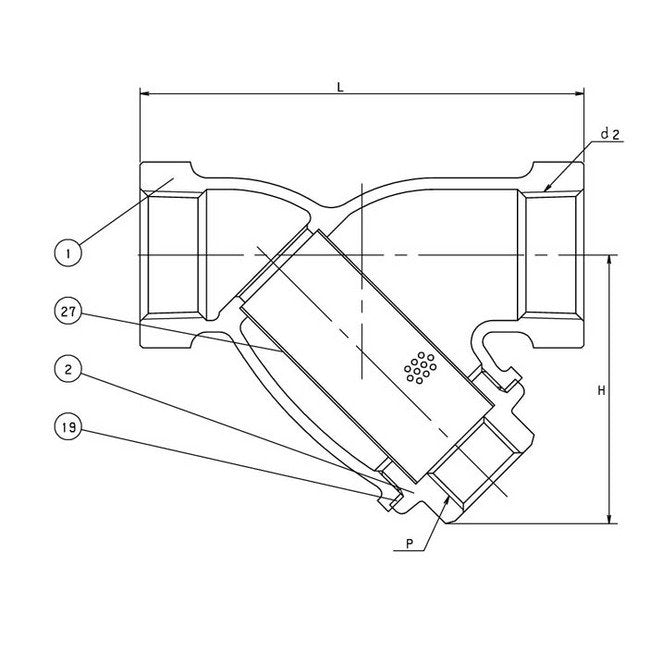

No. Name of Part Specification 1 Body Cast Bronze (B584, C84400) 2 Cap Forged Brass (B283, C37700) 19 Gasket Non-Asbestos Sheet 27 Screen Stainless Steel (A167, Type 304) Cap supplied without plug. Blind cap optionally available.
Specifications Approx Net Wt
2.92
Specifications Carton Qty
24
Specifications Class
AKYU
Specifications Dimension D1 Max
1.382
Specifications Dimension D1 Min
1.378
Specifications Dimension D2
1 1/4 inches
Specifications Dimension H
3.19
Specifications Dimension L
5.31
Specifications Dimension L1
3.77
Specifications Dimension P
1/2
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Design KITZ
