Bronze Class 150 Strainer with Y-Pattern Threaded Cap

Bronze Class 150 Strainer with Y-Pattern Threaded Cap

VAL-dd5dbb

Premium Bronze Class 150 Strainer with Y-Pattern Threaded Cap – Ideal for industrial applications. Effective filtration with stainless steel screen.

$89.99
$89.99
Sale

Initiate Order

Bronze Class 150 Strainer with Y-Pattern Threaded Cap

Bronze Class 150 Strainer with Y-Pattern Threaded Cap

$89.99

Quantity: 1

Claim Your Seller Account

Bronze Class 150 Strainer with Y-Pattern Threaded Cap

Bronze Class 150 Strainer with Y-Pattern Threaded Cap

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your fluid control system with our Bronze Class 150 Strainer featuring a Y-Pattern Threaded Cap for secure installation. Crafted from high-quality bronze, this strainer ensures durability and reliability in industrial applications. Equipped with a stainless steel punched screen (12 mesh standard), it effectively filters impurities. With a pressure rating of 150 PSI for fluids up to 406°F and 150 PSI for saturated steam, this strainer meets stringent quality standards. Additional mesh screen options available upon request.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (B584, C84400) 2 Cap Forged Brass (B283, C37700) 19 Gasket Non-Asbestos Sheet 27 Screen Stainless Steel (A167, Type 304) Cap supplied without plug. Blind cap optionally available.
Specifications Approx Net Wt
7.25
Specifications Carton Qty
8
Specifications Class
CYU

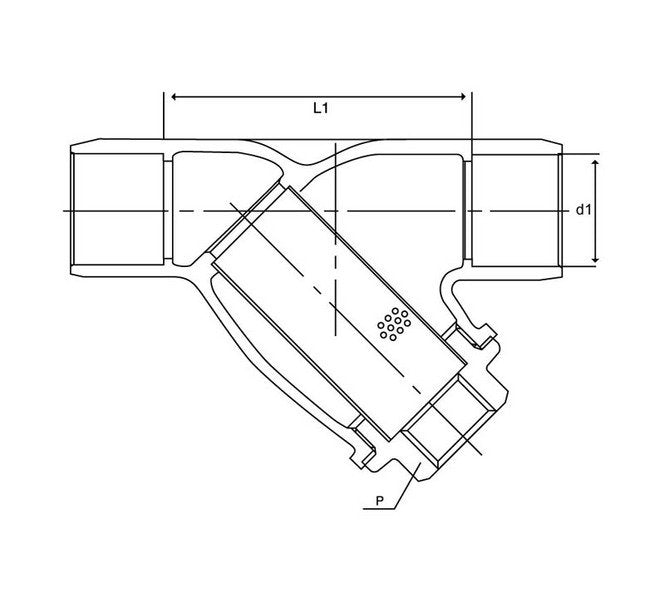

Specifications Dimension D1 Max
2.133
Specifications Dimension D1 Min
2.128
Specifications Dimension D2
2 inches
Specifications Dimension H
4.72
Specifications Dimension L
7.68
Specifications Dimension L1
5.59
Specifications Dimension P
1
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Design KITZ
