Bronze Class 150 Strainer with Y-Pattern Threaded Cap, Bronze Material

Bronze Class 150 Strainer with Y-Pattern Threaded Cap, Bronze Material

VAL-63e9a8

High-performance Bronze Class 150 Strainer with Y-Pattern Threaded Cap and Stainless Steel Screen for efficient filtration.

$89.99
$89.99
Sale

Initiate Order

Bronze Class 150 Strainer with Y-Pattern Threaded Cap, Bronze Material

Bronze Class 150 Strainer with Y-Pattern Threaded Cap, Bronze Material

$89.99

Quantity: 1

Claim Your Seller Account

Bronze Class 150 Strainer with Y-Pattern Threaded Cap, Bronze Material

Bronze Class 150 Strainer with Y-Pattern Threaded Cap, Bronze Material

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Bronze Class 150 Strainer is designed for high performance and durability in valve applications. Featuring a Y-Pattern design with threaded cap and ends, this strainer is crafted from bronze material for superior strength and corrosion resistance. The stainless steel punched screen ensures efficient filtration, making it ideal for various fluid applications. With compliance to Proposition 65 of the State of California, this strainer is a reliable choice for non-potable water systems. It meets Class CYU specifications, with a pressure/temperature rating of 150 PSI up to 406°F for fluids, 150 PSI for saturated steam up to 366°F, and 300 PSI for non-shock cold water, oil, or gas.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (B584, C84400) 2 Cap Forged Brass (B283, C37700) 19 Gasket Non-Asbestos Sheet 27 Screen Stainless Steel (A167, Type 304) Cap supplied without plug. Blind cap optionally available.
Specifications Approx Net Wt
4.31
Specifications Carton Qty
16
Specifications Class
CYU

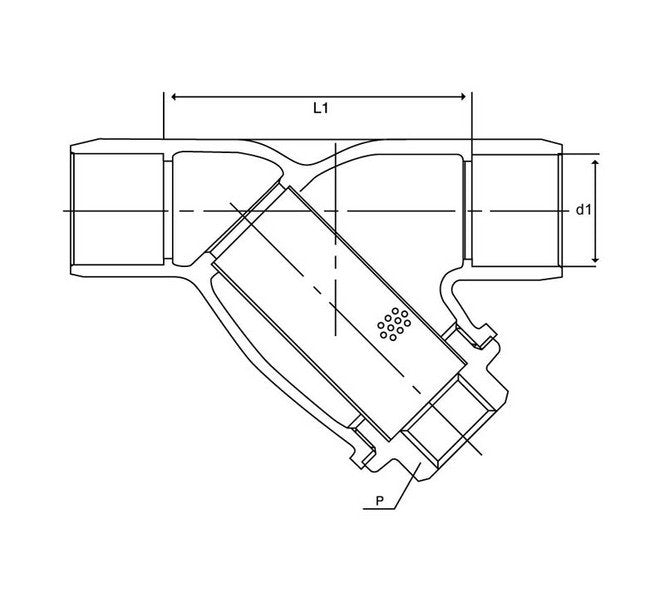

Specifications Dimension D1 Max
1.633
Specifications Dimension D1 Min
1.628
Specifications Dimension D2
1 1/2 inches
Specifications Dimension H
3.82
Specifications Dimension L
6.30
Specifications Dimension L1
4.51
Specifications Dimension P
3/4
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Design KITZ
