Bronze Class 150 Y-Pattern Threaded Strainer

Bronze Class 150 Y-Pattern Threaded Strainer

VAL-eec9a1

Reliable Bronze Class 150 Y-Pattern Threaded Strainer for efficient fluid filtration in industrial applications.

$49.99
$49.99
Sale

Initiate Order

Bronze Class 150 Y-Pattern Threaded Strainer

Bronze Class 150 Y-Pattern Threaded Strainer

$49.99

Quantity: 1

Claim Your Seller Account

Bronze Class 150 Y-Pattern Threaded Strainer

Bronze Class 150 Y-Pattern Threaded Strainer

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Bronze Class 150 Y-Pattern Threaded Strainer is a durable and reliable solution for filtering fluids and gases in industrial settings. Constructed with high-quality bronze material, this strainer features a stainless steel punched screen for efficient filtration. With a pressure rating of 150 PSI and a temperature range up to 406°F, it meets stringent industry standards for performance. The Y-pattern design ensures optimal flow and minimizes pressure drop, making it ideal for various applications. Compliant with Prop 65 regulations, this strainer is suitable for non-potable water systems and is available with different mesh screen options for customization.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (B584, C84400) 2 Cap Forged Brass (B283, C37700) 19 Gasket Non-Asbestos Sheet 27 Screen Stainless Steel (A167, Type 304) Cap supplied without plug. Blind cap optionally available.
Specifications Approx Net Wt
0.76
Specifications Carton Qty
80
Specifications Class
CYU

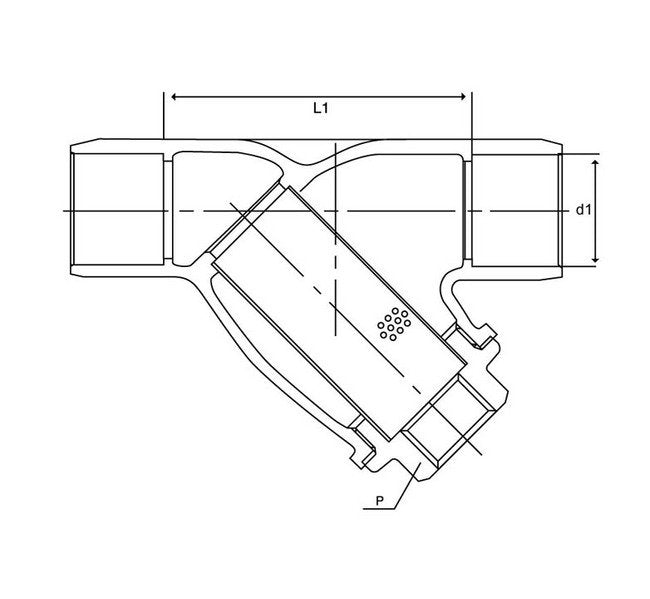

Specifications Dimension D1 Max
0.631
Specifications Dimension D1 Min
0.627
Specifications Dimension D2
1/2 inches
Specifications Dimension H
1.93
Specifications Dimension L
3.15
Specifications Dimension L1
2.15
Specifications Dimension P
1/4
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Design KITZ
