Bronze Double Flanged Valves ANSI Compliant
Bronze Double Flanged Valves ANSI Compliant
SKU:VAL-4ce17d
Series 55 Double Flanged Valves ANSI - High-quality bronze construction, ANSI standards compliant, various materials available for optimal performance.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Bronze Double Flanged Valves ANSI Compliant
$499.99
Quantity: 1
Claim Your Seller Account
Bronze Double Flanged Valves ANSI Compliant
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 55 Double Flanged Valves ANSI are meticulously engineered to meet the strict ISO 5752 S-20 and ANSI standards, ensuring superior performance and reliability in industrial applications. Available in sizes ranging from 50A to 1000A (2" to 40"), these valves boast a sturdy body made of Bronze, Carbon Steel, Cast Iron, Ductile Iron, or Stainless Steel for exceptional durability. The disc options include Aluminum Bronze, Coated, Ductile Iron, and Stainless Steel, while the stem materials range from K Monel to Stainless Steel. With a choice of EPDM, NBR, Neoprene, Silicone, or Viton for seat and packaging materials, these valves offer versatility and resilience in various operating conditions.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

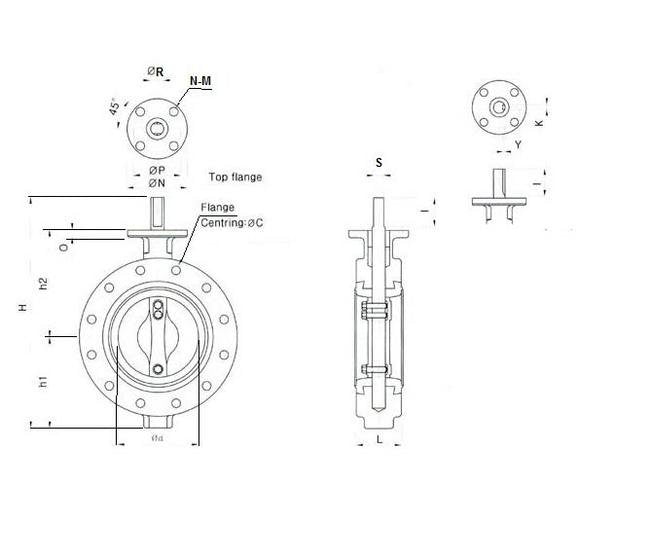

Specifications C
476 mm
Specifications D
327 mm
Specifications H
675 mm
Specifications H1
271 mm
Specifications H2
324 mm
Specifications Hole Diameter
1 in
Specifications L
78 mm
Specifications Number Of Holes
12
Specifications O
20 mm
Specifications Size
350 - 14"
Specifications Standard
ANSI
Specifications Stem I
45 mm
Specifications Stem R
32 mm
Specifications Stem S
19.5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F10
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
66.6 kg
