Bronze Fire Hose Valve - Angle Pattern, Storz System Valve

Name: Bronze Fire Hose Valve - Angle Pattern, Storz System Valve
Brand: World Wide Metric, Inc.
SKU: VAL-6af14c
Price: 219.99 USD
Availability: OutOfStock

SKU:VAL-6af14c

DIN-compliant PN 16 Bronze Fire Hose Valve with Angle Pattern & Storz System, ideal for firefighting applications.

$219.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

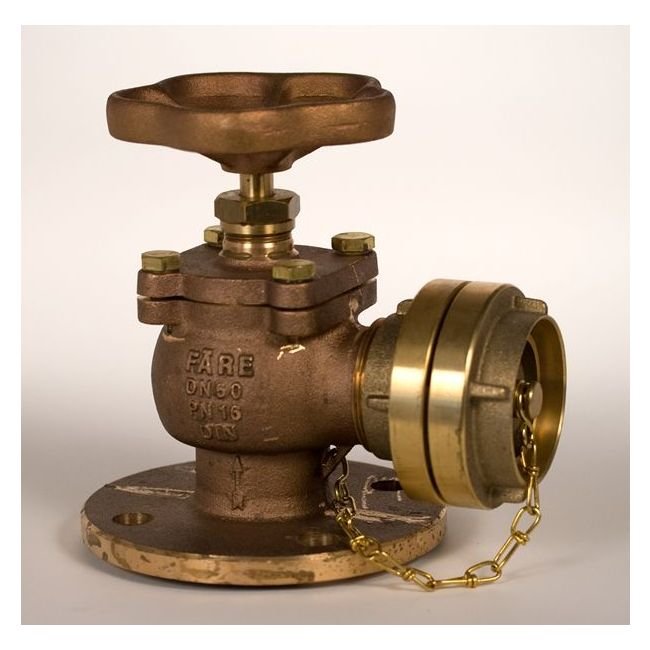

The PN 16 Bronze Fire Hose Valve with Angle Pattern and Storz System design is a reliable choice for both consumer and institutional buyers. Crafted with Gunmetal body and discs, and Brass stem and coupling materials, this valve meets DIN standards for quality and safety. With a size of 065 and hydraulic inspection measurements of Body: 25 and Seat: 16, this valve offers optimal performance in firefighting applications. Featuring bronze construction, handwheel actuators, and flanges according to DIN2501-PN16, this valve ensures durability, ease of use, and seamless integration with existing systems.

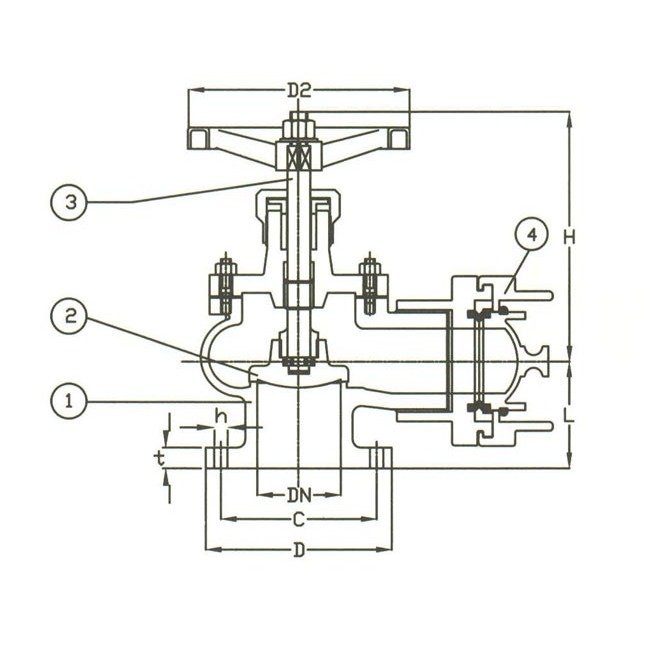

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

145 mm

Specifications D

185 mm

Specifications D2

160 mm

Specifications Disc Material

Bronze

Specifications H

165 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

065

Specifications Stem Material

Brass

Specifications T

18 mm

Specifications Weight

10.8 kg
