Bronze Gate Class 150 Valve

Bronze Gate Class 150 Valve

VAL-679b2e

Reliable Bronze Gate Valve for high-pressure applications, Class C150L rating, ideal for hose beds.

$89.99
$89.99
Sale

Initiate Order

Bronze Gate Class 150 Valve

Bronze Gate Class 150 Valve

$89.99

Quantity: 1

Claim Your Seller Account

Bronze Gate Class 150 Valve

Bronze Gate Class 150 Valve

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Bronze Gate Class 150 Valve is a high-quality solution for fluid control applications. Featuring a Screw-In-Bonnet design with a Rising Stem and Solid Wedge Disc, this valve ensures reliable performance and durability. With a Class C150L rating and capable of handling pressure up to 150 PSI for various fluids and temperatures up to 406°F, it meets stringent industry standards while providing efficient operation. Crafted from premium materials including Cast Bronze and Aramid Fibers with Graphite packing, this valve offers superior strength and corrosion resistance. Ideal for hose bed applications, it guarantees long-lasting dependability in demanding environments.

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 – 1) Zinc Die-Cast (B86) (11/4 – 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
1.50
Specifications Carton Qty
36
Specifications Class
C150L

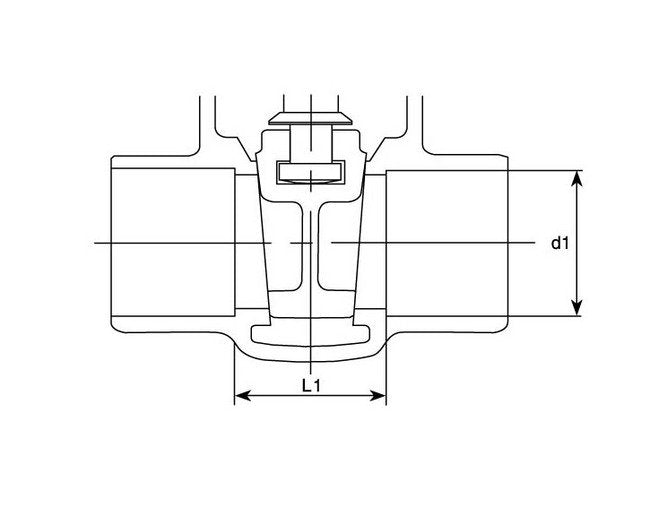

Specifications Dimension D1
2.76
Specifications Dimension D1 Max
0.881
Specifications Dimension D1 Min
0.877
Specifications Dimension D2
3/4 inches
Specifications Dimension H
6.18
Specifications Dimension L
2.20
Specifications Dimension L1
1.02
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
