Bronze Gate Valve - 31.75mm Size, 300 lb. SWP
Bronze Gate Valve - 31.75mm Size, 300 lb. SWP
SKU:VAL-fdac95
Premium Bronze Gate Valve - Ideal for High-Pressure Services
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Bronze Gate Valve - 31.75mm Size, 300 lb. SWP
$149.99
Quantity: 1
Claim Your Seller Account
Bronze Gate Valve - 31.75mm Size, 300 lb. SWP
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

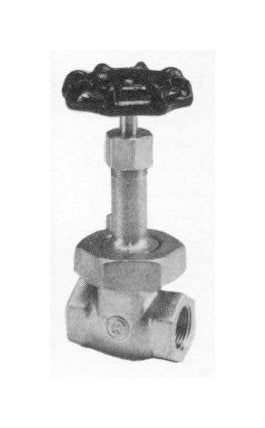

The Bronze Gate Valve IB652 is designed for heavy-duty service, featuring a solid wedge disc, rising stem, Cu-Ni seat, and union bonnet. With threaded ends and conforming to MSS SP-80 Type 2, Class 300, this valve provides reliable performance under high pressure conditions. Crafted from high-quality bronze materials and precision-engineered to meet stringent industry standards, this valve ensures durability and efficiency in valve applications.
Product Specifications
Material List 0

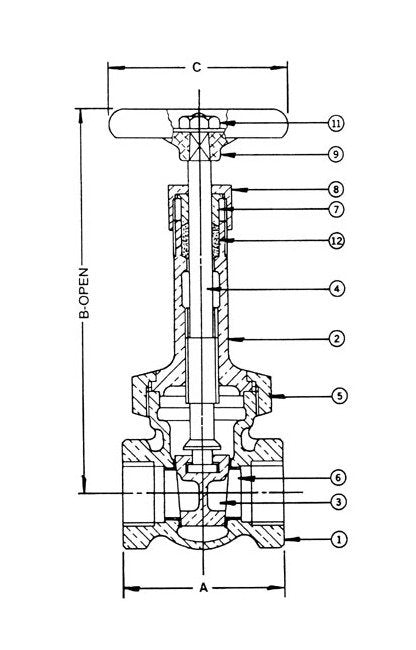

MATERIAL LIST No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Wedge Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Seat Ring Cu-Ni 90-10 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 283 C37700 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Packing Non-Asbestos Commercial
Specifications Dimension A
85.73 mm
Specifications Dimension B
217.50 mm
Specifications Dimension C
82.55 mm
Specifications Material
Bronze
Specifications Size
31.75 mm
