Bronze Gate Valve Class 150, Threaded End, 2.5 inches
Bronze Gate Valve Class 150, Threaded End, 2.5 inches
SKU:VAL-5fd6f9
High-quality Bronze Gate Valve for industrial applications with Class 150 rating and threaded end. Pressure up to 150 PSI and temp up to 406°F. MSS SP-80 Type 2 compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Bronze Gate Valve Class 150, Threaded End, 2.5 inches
$89.99
Quantity: 1
Claim Your Seller Account
Bronze Gate Valve Class 150, Threaded End, 2.5 inches
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Gate Class 150 Valve is a robust and reliable valve designed for industrial applications requiring a maximum pressure of 150 PSI and temperatures up to 406°F for fluids and 366°F for saturated steam. With a screw-in bonnet, rising stem, and solid wedge disc, this valve ensures secure shut-off and long-term durability. Crafted from high-quality bronze materials, including body, bonnet, stem, and disc, it meets stringent industry standards like MSS SP-80 Type 2 for exceptional performance and longevity.
Product Specifications

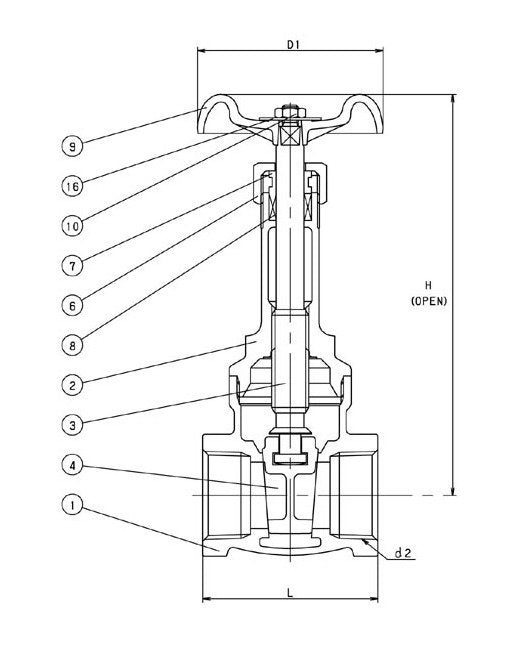

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 â 1) Zinc Die-Cast (B86) (11/4 â 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
14.75
Specifications Carton Qty
4
Specifications Class
AK150L
Specifications Dimension D1
6.10
Specifications Dimension D2
2 1/2 inches
Specifications Dimension H
15.16
Specifications Dimension L
4.72
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
