Bronze Gate Valve Class 150 - Threaded Ends

Bronze Gate Valve Class 150 - Threaded Ends

VAL-b60d3a

Reliable Bronze Gate Valve for high-pressure applications with Screw-In-Bonnet design and Rising Stem. Meets ANSI and MSS standards.

$89.99
$89.99
Sale

Initiate Order

Bronze Gate Valve Class 150 - Threaded Ends

Bronze Gate Valve Class 150 - Threaded Ends

$89.99

Quantity: 1

Claim Your Seller Account

Bronze Gate Valve Class 150 - Threaded Ends

Bronze Gate Valve Class 150 - Threaded Ends

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Bronze Gate Class 150 Valve features a Screw-In-Bonnet design with a Rising Stem and Solid Wedge Disc for reliable performance in high-pressure applications. With a pressure/temperature rating of 150 PSI for fluids up to 406°F, 150 PSI for saturated steam up to 366°F, and 300 PSI for non-shock cold water, oil, or gas, this valve ensures durability and efficiency. Made from high-quality cast bronze materials, including the body, bonnet, stem, and disc, it meets ANSI and MSS standards, making it suitable for various industrial and institutional applications.

Product Specifications

Material List 0

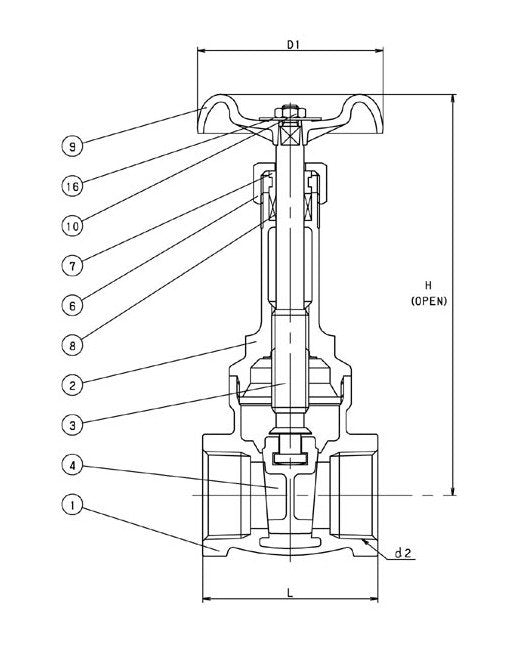

No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 – 1) Zinc Die-Cast (B86) (11/4 – 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
1.00
Specifications Carton Qty
48
Specifications Class
AK150L
Specifications Dimension D1
2.17
Specifications Dimension D1 Max
0.631
Specifications Dimension D1 Min
0.627
Specifications Dimension D2
1/2 inches
Specifications Dimension H
5.39
Specifications Dimension L
2.01
Specifications Dimension L1
0.93
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
