Bronze Gate Valve IB652 - 6.35mm

Name: Bronze Gate Valve IB652 - 6.35mm
Brand: Caylor Industrial Sales, Inc.
SKU: VAL-0643dd
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-0643dd

Highly durable Bronze Gate Valve IB652 for heavy-duty applications, featuring solid wedge disc, rising stem, Cu-Ni seat, and union bonnet. Conforms to MSS SP-80 Type 2 Class 300 standards.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

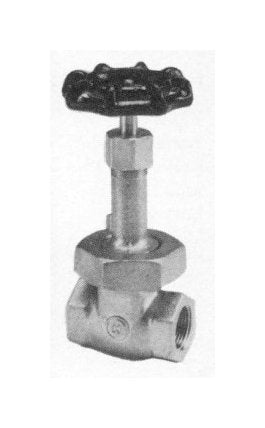

The Bronze Gate Valve IB652 is designed for heavy-duty service, featuring a solid wedge disc, rising stem, Cu-Ni seat, and union bonnet. With threaded ends and conforming to MSS SP-80 Type 2 Class 300, this high-quality valve ensures reliable performance and longevity. Crafted from top-grade materials including Bronze and Cu-Ni 90-10, it offers durability and corrosion resistance, making it ideal for industrial applications.

Product Specifications

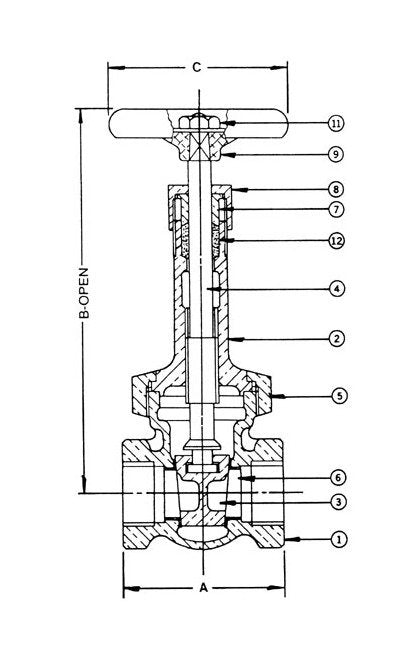

Material List 0

MATERIAL LIST No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Wedge Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Seat Ring Cu-Ni 90-10 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 283 C37700 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Packing Non-Asbestos Commercial

Specifications Dimension A

46.05 mm

Specifications Dimension B

130.18 mm

Specifications Dimension C

57.15 mm

Specifications Material

Bronze

Specifications Size

6.35 mm

Bronze Gate Valve IB652 - 6.35mm
