Bronze Globe Bolted Bonnet SDNR Valve - PN 16, Size 250mm

Name: Bronze Globe Bolted Bonnet SDNR Valve - PN 16, Size 250mm
Brand: World Wide Metric, Inc.
SKU: VAL-a547ec
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-a547ec

High-performance Bronze Globe Valve - PN 16, DIN Compliant, Size: 250mm

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Globe Bolted Bonnet SDNR Valve is designed for robust performance and durability. Its gunmetal body, disc, and seat meet DIN standards, while the brass stem ensures reliable operation. With a size of 250mm, this valve offers hydraulic inspections at rated pressures of 16 and 10. Compliant with ISO5752 and DIN2501-PN10, this valve is ideal for industrial applications requiring precision and efficiency.

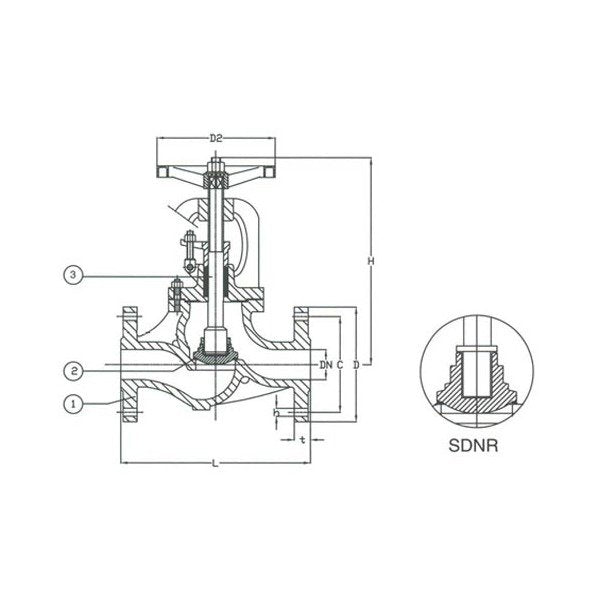

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

350 mm

Specifications Connection

Flanged Drilled

Specifications D

395 mm

Specifications D2

500 mm

Specifications Disc Material

Bronze

Specifications H

750 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

730 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

250

Specifications Stem Material

Brass

Specifications T

26 mm

Specifications Weight

165.0 kg
