Bronze Globe Bolted Bonnet SDNR Valve - Size 025 PN16

Name: Bronze Globe Bolted Bonnet SDNR Valve - Size 025 PN16
Brand: World Wide Metric, Inc.
SKU: VAL-e4da83
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-e4da83

High-quality Bronze Globe Valve for precise hydraulic control in institutional settings. Meets ISO and DIN standards.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Globe Bolted Bonnet SDNR Valve is designed for reliability and durability. Constructed with Gunmetal body, seat, and disc, along with Brass stem, it meets ISO5752 and DIN2501-PN16 standards. Features a Handwheel actuator for manual control and Flanged Drilled connection. With precise dimensions and sturdy materials, this valve ensures efficient hydraulic performance in institutional environments.

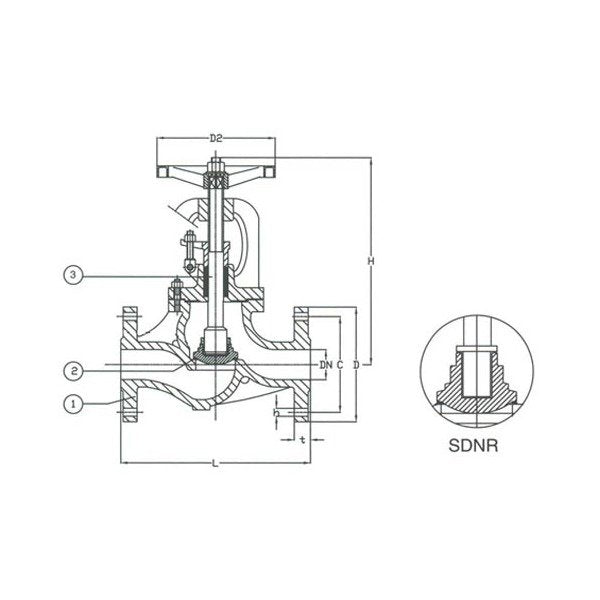

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

85 mm

Specifications Connection

Flanged Drilled

Specifications D

115 mm

Specifications D2

125 mm

Specifications Disc Material

Bronze

Specifications H

190 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

160 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

025

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

6 kg

Bronze Globe Bolted Bonnet SDNR Valve - Size 025 PN16
